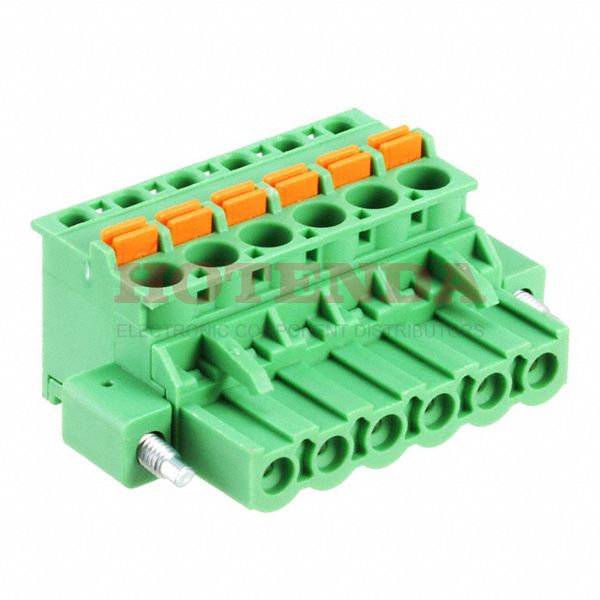

Name: 1874141
Brand: Phoenix Contact
SKU: 1874141
Price: 9.24000 USD
Availability: InStock

new

1874141

Manufacturer part number:1874141

Manufacturer:Phoenix Contact

Description:1874141 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1874141 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	11.42001g
Packaging	Bulk
Published	2010
Series	COMBICON FKCVR
Feature	Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Number of Positions	6
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, UL 94V-0
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	16.8mm
Insulation Height	0.661 16.80mm
Current Rating	12A
Termination Style	Screwless - Leg Spring, Push-In Spring
Approval Agency	CB, VDE, cULus
Number of Contacts	6
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Number of Ways	6
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Wire Cross Section	2.5 mm2
Fastening Method	SPRING LOADED
Height	26.6mm
Length	40.58mm
Width	26.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1874141 Product Details

1874141 Overview

This product is packaged in a Socket carton.It's mounted Free Hanging (In-Line).Packaging the product involves using a Bulk case.The product is a part of the COMBICON FKCVR Series.Additionally, there are other features such as PA, UL 94V-0.A number of features make the Mating Flange, Retention Latches (Non-Wire Side) feature more powerful.It's mounted by Cable, Free Hanging, Panel.There are a lot of similarities between this part and other Plug, Female Sockets products.
