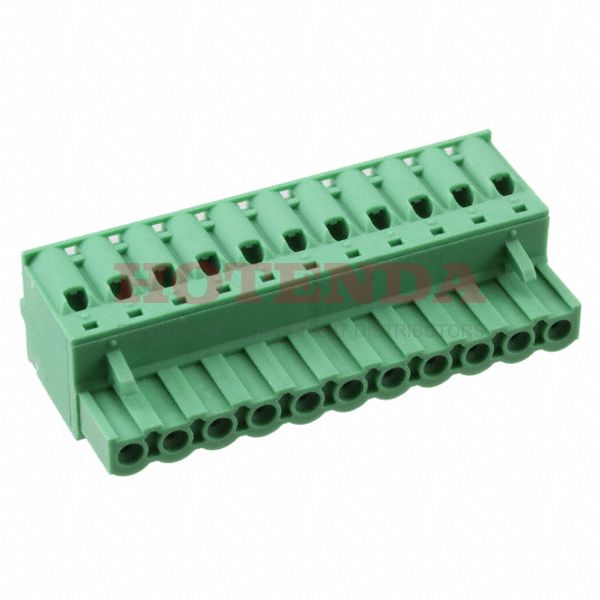

Phoenix Contact

1873142 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1873142 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 138.000007g
PackagingBulk
Published 2003
Series COMBICON FKC
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 11
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional FeaturePA, UL 94V-0
HTS Code8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Current Rating12A
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Number of Ways 11
Safety Approval CB; CCA; CUL; GOST; UL; VDE
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Wire Cross Section 2.5 mm2
Fastening Method SPRING LOADED
Height 15mm
Length 56.5mm
Width 56.5mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:660 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$2.579525$2.579525
10$2.433514$24.33514
100$2.295768$229.5768
500$2.165819$1082.9095
1000$2.043226$2043.226

1873142 Product Details

1873142 Overview


The device's mounting type is Free Hanging (In-Line).We package the product with a Bulk case.As a product of the COMBICON FKC Series, it can be found in this category.There are also other features such as PA, UL 94V-0, to name only a few.In many ways, Retention Latches (Non-Wire Side) makes it more powerful.There is a mounting hole at Free Hanging.Other Plug, Female Sockets products benefit from this part as well.

1873142 Features


COMBICON FKC series

1873142 Applications


There are a lot of Phoenix Contact 1873142 Terminal Blocks applications.

  • Telecommunications
  • Measuring & Control Technology
  • Electrical substations
  • Anywhere power is distributed
  • Industrial Automation
  • Automotive Electronics
  • Transportation
  • Datacom
  • Instrumentation
  • Energy efficient lighting (LED)
