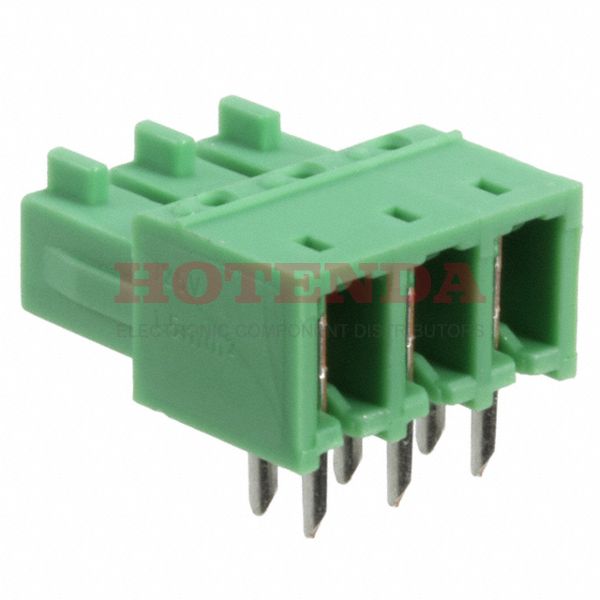

Name: 1862580
Brand: Phoenix Contact
SKU: 1862580
Price: 3.80000 USD
Availability: InStock

new-10%

1862580

Manufacturer part number:1862580

Manufacturer:Phoenix Contact

Description:1862580 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1862580 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	120.999989g
Packaging	Bulk
Published	2010
Series	COMBICON IMC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Socket
Type	Header, Female Sockets
Number of Positions	3
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	STANDARD: UL 94V-0, PA
Pitch	0.150 3.81mm
Orientation	Right Angle
Depth	14.5mm
Insulation Height	0.270 6.86mm
Current Rating	8A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Decks	1
Voltage - IEC	320V
Number of Ways	3
Safety Approval	CB; CCA; CUL; EAC; UL; VDE
Header Orientation	90°, Right Angle
Fastening Method	CONNECTOR
Height	12.22mm
Length	12.22mm
Width	14.5mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1862580 Product Details

1862580 Overview

Packaging is Socket.This device has a Through Hole mounting type.We pack the product in a Bulk case.There is a product in the COMBICON IMC Series.Besides that, there's also STANDARD: UL 94V-0, PA, to name a few.By Through Hole, the part is mounted.Many Header, Female Sockets products share the same benefits as this part.
