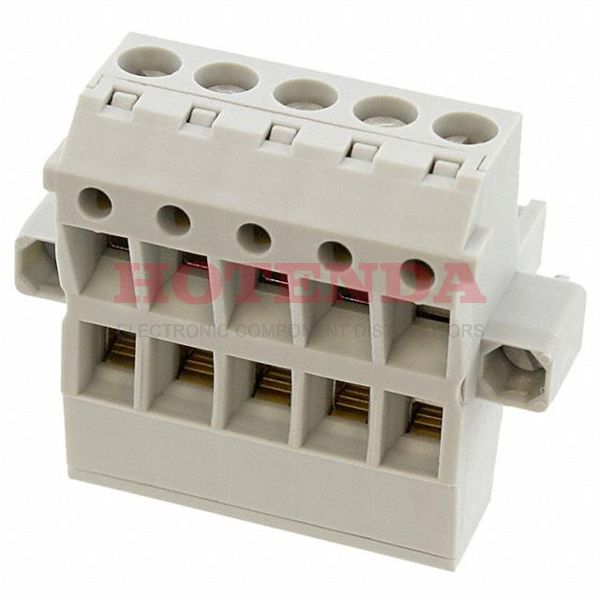

Name: 1853201
Brand: Phoenix Contact
SKU: 1853201
Price: 17.82000 USD
Availability: InStock

new

1853201

Manufacturer part number:1853201

Manufacturer:Phoenix Contact

Description:1853201 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1853201 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Gold
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	17.579993g
Packaging	Bulk
Published	2011
Series	COMBICON TMSTBP
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	5
Color	Gray
Number of Rows	1
Voltage - Rated	250V
Pitch	0.200 5.08mm
Orientation	Right Angle
Insulation Height	1.138 28.90mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	5
Housing Color	Grey
Voltage	300V
Max Current Rating	12A
Number of Levels	1 (Mate), 2 (Input)
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Positions Per Level	5 (Mate), 10 (Input)
Number of Ways	5
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Height	28.9mm
Length	21.5mm
Width	36.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1853201 Product Details

1853201 Overview

It comes in a Screw, Socket package.This device's mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It's from the COMBICON TMSTBP Series.A number of advantages can be derived from its Mating Flange feature.There's a Free Hanging, Panel mount on the part.Several of the benefits of this part are also shared by other Plug, Female Sockets products.
