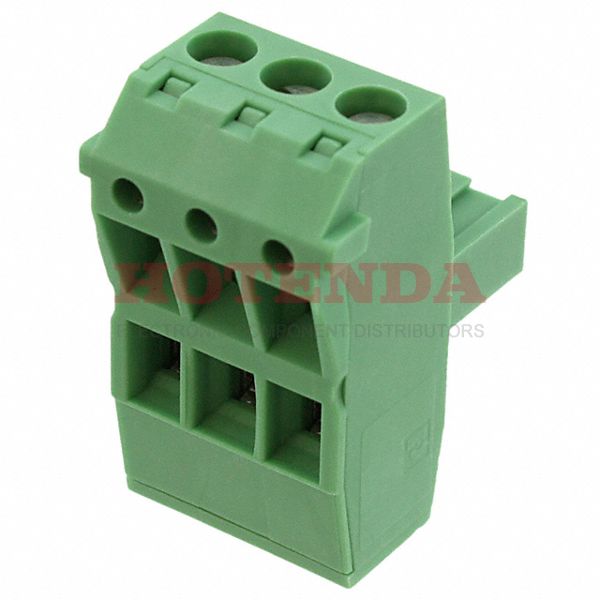

Name: 1853023
Brand: Phoenix Contact
SKU: 1853023
Price: 6.53000 USD
Availability: InStock

new-10%

1853023

Manufacturer part number:1853023

Manufacturer:Phoenix Contact

Description:1853023 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1853023 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	207.999998g
Packaging	Bulk
Published	2010
Series	COMBICON TMSTBP
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	3
Color	Green
Number of Rows	2
Voltage - Rated	250V
Additional Feature	PA, 94V-0
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	21.5mm
Insulation Height	1.138 28.90mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1 (Mate), 2 (Input)
Current	12A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Positions Per Level	3 (Mate), 6 (Input)
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Height	21.5mm
Length	17.24mm
Width	28.9mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1853023 Product Details

1853023 Overview

Currently, it is packaged in Screw, Socket.Mounting type Free Hanging (In-Line) is selected for the device.It has been determined that a Bulk case is necessary to package the product.It belongs to the COMBICON TMSTBP Series of products.Additionally, there are other features such as PA, 94V-0.In many ways, its Retention Latches (Non-Wire Side) feature makes it more powerful.Part Free Hanging is mounted to the part.Ensure that this chip's supply voltage does not exceed 250V volts.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
