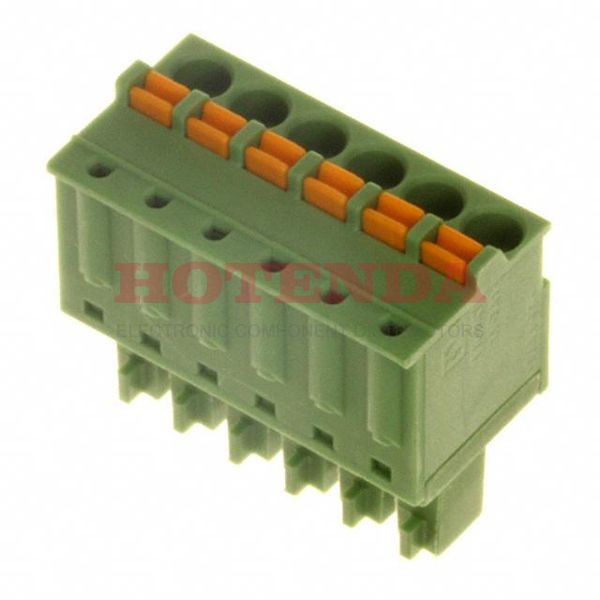

Name: 1851083
Brand: Phoenix Contact
SKU: 1851083
Price: 12.70000 USD
Availability: InStock

new

1851083

Manufacturer part number:1851083

Manufacturer:Phoenix Contact

Description:1851083 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1851083 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	101.999997g
Packaging	Bulk
Published	1998
Series	COMBICON FK-MCP
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PA, 94V-0
Pitch	0.150 3.81mm
Orientation	Straight
Insulation Height	0.488 12.40mm
Current Rating	8A
Termination Style	Screwless - Leg Spring, Push-In Spring
Approval Agency	CB, CSA, UL, VDE, cULus
Number of Contacts	6
Voltage	300V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	26 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	320V
Number of Ways	6
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Stripping Length	9mm
Fastening Method	SPRING LOADED
Height	20.8mm
Length	12.4mm
Width	23.65mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1851083 Product Details

1851083 Overview

Packaging for this item is Socket.This device has a Free Hanging (In-Line) mounting type.To package the product, we use a Bulk case.It is part of the COMBICON FK-MCP Series of products.In addition, there are other features, such as PA, 94V-0, to mention just a few.Free Hanging is used to mount the part.It is a part that shares many benefits with other products from the Plug, Female Sockets line.
