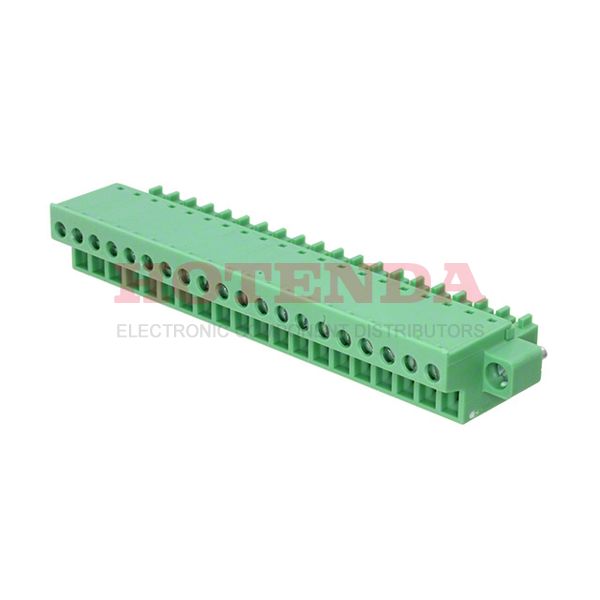

1851038

1851038

1851038

Phoenix Contact

1851038 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1851038 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 28.349523g
PackagingBulk
Published 2003
Series COMBICON FRONT-MC
Feature Mating Flange
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 20
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional FeaturePA, 94V-0
HTS Code8536.69.40.40
Pitch 0.150 3.81mm
Insulation Height 0.484 12.30mm
Current Rating8A
Termination Style Screw - Pressure Clip
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 16 AWG
Number of Decks 1
Wire Gauge or Range - AWG 16-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 20
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.14-1.5mm2
Wire Strip Length 9mm
Screw Size M2
Height 21.7mm
Length 12.3mm
Width 86.59mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:196 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$43.67000$43.67
10$42.48000$424.8
50$39.70060$1985.03
100$36.52470$3652.47
250$33.74556$8436.39

1851038 Product Details

1851038 Overview


The product comes in a package of Screw, Socket.A Free Hanging (In-Line) mounting type is specified for the device.We package the product with a Bulk case.Specifically, it is one of the products in the COMBICON FRONT-MC Series.Furthermore, there are other features available, such as PA, 94V-0, to name a few.In many ways, Mating Flange makes it more powerful.It's mounted by Free Hanging.Other Plug, Female Sockets products benefit from this part as well.

1851038 Features


COMBICON FRONT-MC series

1851038 Applications


There are a lot of Phoenix Contact 1851038 Terminal Blocks applications.

  • Data Technology
  • Blowers
  • Communication
  • Datacom
  • Refrigeration control
  • Electrical substations
  • Instrumentation
  • Energy efficient lighting (LED)
  • Medical technology
  • Control panels
