1850916

1850916

1850916

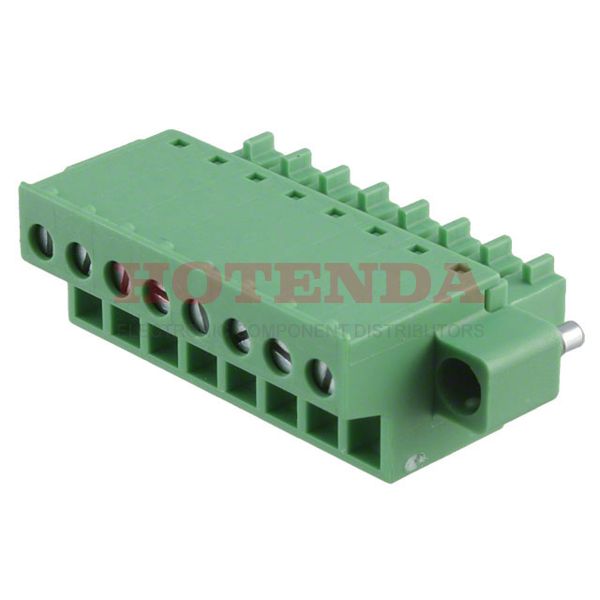

Phoenix Contact

1850916 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1850916 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 98.999993g
PackagingBulk
Published 2011
Series COMBICON FRONT-MC
Feature Mating Flange
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional FeaturePA, 94V-0
Pitch 0.150 3.81mm
Insulation Height 0.484 12.30mm
Reach Compliance Code unknown
Current Rating8A
Termination Style Screw - Pressure Clip
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 16 AWG
Number of Decks 1
Wire Gauge or Range - AWG 16-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 8
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.14-1.5mm2
Wire Strip Length 9mm
Number of Positions Per Level 8
Screw Size M2
Height 21.7mm
Length 12.3mm
Width 40.87mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:488 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$17.39000$17.39
10$16.92000$169.2
50$15.81300$790.65
100$14.54800$1454.8
250$13.44116$3360.29
500$12.80856$6404.28

1850916 Product Details

1850916 Overview


This product is packaged in a Screw, Socket box.This device is mounted in the Free Hanging (In-Line) position.To package the product, a Bulk case is used.There is a product in the COMBICON FRONT-MC Series.There are also features like PA, 94V-0, just to name a few.With its Mating Flange feature, it is more powerful in many ways.By Free Hanging, the part is mounted.There are a number of benefits that this part has in common with other Plug, Female Sockets products.

1850916 Features


COMBICON FRONT-MC series

1850916 Applications


There are a lot of Phoenix Contact 1850916 Terminal Blocks applications.

  • Refrigeration control
  • Control panels
  • Industrial Automation
  • LED municipal outdoor and street lighting
  • Data Technology
  • Military Technology
  • Transportation
  • Telecommunications
  • Blowers
  • Automotive Electronics
