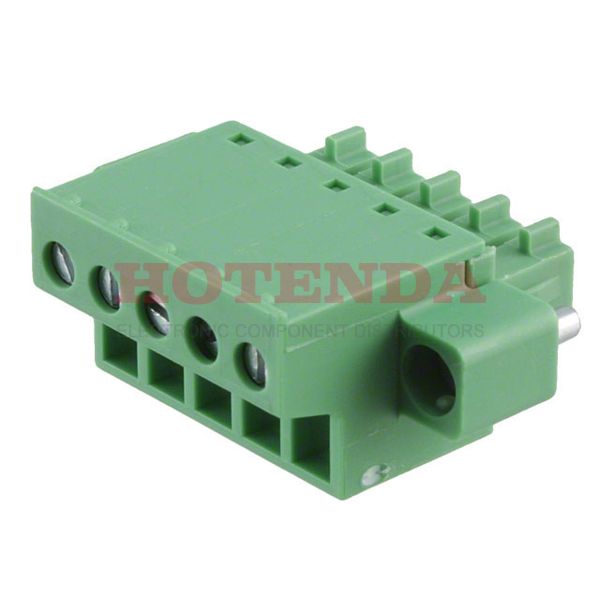

Name: 1850880
Brand: Phoenix Contact
SKU: 1850880
Price: 12.10000 USD
Availability: InStock

new

1850880

Manufacturer part number:1850880

Manufacturer:Phoenix Contact

Description:1850880 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1850880 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	98.999993g
Packaging	Bulk
Published	2011
Series	COMBICON FRONT-MC
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	5
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PA, 94V-0
Pitch	0.150 3.81mm
Insulation Height	0.484 12.30mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Screw - Pressure Clip
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Wire Gauge or Range - AWG	16-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	5
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	9mm
Screw Size	M2
Height	21.7mm
Length	12.3mm
Width	29.44mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1850880 Product Details

1850880 Overview

This product is packaged in a Screw, Socket box.This device's mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It's from the COMBICON FRONT-MC Series.As well as PA, 94V-0, to name a few.Its Mating Flange feature renders it more powerful in many ways.Mounting of the part is based on Free Hanging.It shares many benefts with other Plug, Female Sockets products.
