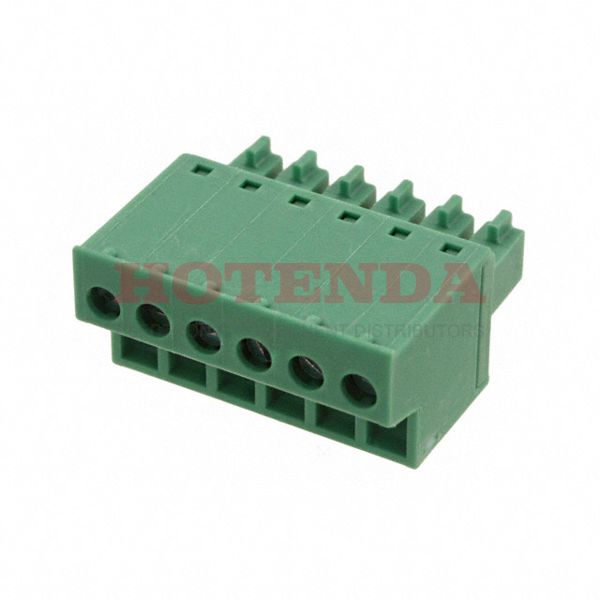

Name: 1850709
Brand: Phoenix Contact
SKU: 1850709
Price: 14.97000 USD
Availability: InStock

new

1850709

Manufacturer part number:1850709

Manufacturer:Phoenix Contact

Description:1850709 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1850709 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	98.999993g
Packaging	Bulk
Published	2011
Series	COMBICON FRONT-MC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	160V
Additional Feature	STANDARD: UL 94V-0, PA, APPROVAL: VDE
Pitch	0.150 3.81mm
Orientation	Straight
Depth	21.7mm
Insulation Height	0.484 12.30mm
Current Rating	8A
Termination Style	Screw - Pressure Clip
Approval Agency	CSA
Number of Contacts	6
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	6
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	9mm
Screw Size	M2
Height	21.7mm
Length	23.65mm
Width	23.65mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1850709 Product Details

1850709 Overview

Packaging is in the form of Screw, Socket.Free Hanging (In-Line) is the mounting type.It is necessary to use a Bulk case for packaging the product.As a product of the COMBICON FRONT-MC Series, it can be found in this category.Also, there's STANDARD: UL 94V-0, PA, APPROVAL: VDE, to name a few.This part is mounted by Cable, Free Hanging. This chip should not be supplied with a voltage greater than 160V.It is a part that shares many benefits with other products from the Plug, Female Sockets line.
