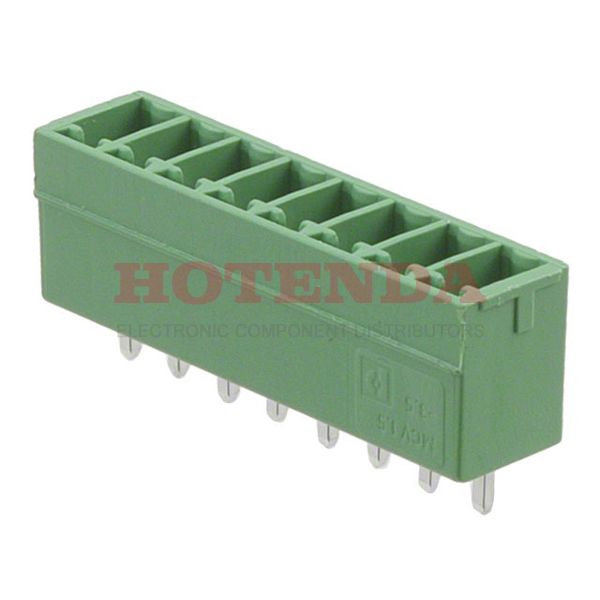

Name: 1843664
Brand: Phoenix Contact
SKU: 1843664
Price: 3.97000 USD
Availability: InStock

new-10%

1843664

Manufacturer part number:1843664

Manufacturer:Phoenix Contact

Description:1843664 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1843664 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Tin
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2001
Series	COMBICON MCV
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	8
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	160V
Voltage - Rated DC	640mV
Pitch	0.138 3.50mm
Orientation	Straight
Depth	7.25mm
Insulation Height	0.362 9.20mm
Current Rating	8A
Termination Style	Solder
Voltage - Rated AC	160V
Approval Agency	CSA, UL
Lead Pitch	3.5mm
Number of Contacts	8
Housing Color	Green
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Poles	8
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	8A
Voltage - IEC	250V
Positions Per Level	8
Header Orientation	Vertical
Current - IEC	8A
Number of Positions Per Level	8
Height	12.6mm
Length	29.4mm
Width	29.4mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1843664 Product Details

1843664 Overview

It comes in Plug packaging.Through Hole is the type of mounting for the device.An orange Bulk case is used to package the product.This product is in the COMBICON MCV Series.Part Through Hole is mounted to the part.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
