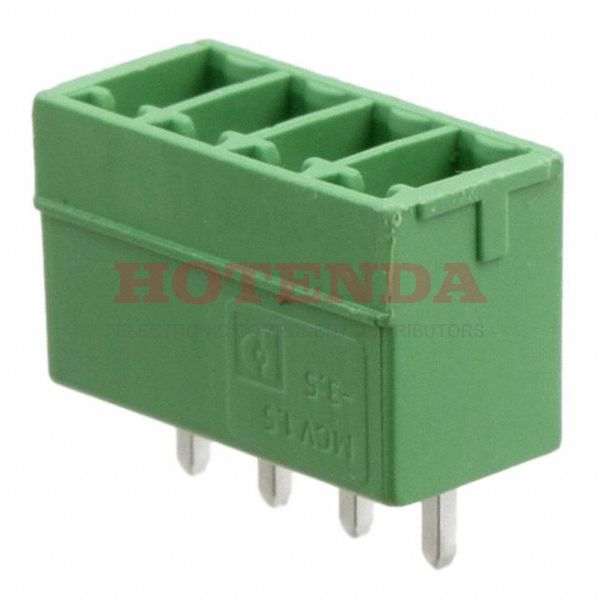

Name: 1843622
Brand: Phoenix Contact
SKU: 1843622
Price: 2.06000 USD
Availability: InStock

new-10%

1843622

Manufacturer part number:1843622

Manufacturer:Phoenix Contact

Description:1843622 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1843622 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2001
Series	COMBICON MCV
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated DC	640mV
Pitch	0.138 3.50mm
Orientation	Straight
Depth	7.25mm
Insulation Height	0.362 9.20mm
Current Rating	8A
Termination Style	Solder
Voltage - Rated AC	160V
Approval Agency	CSA, UL
Lead Pitch	3.5mm
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Poles	4
Number of Decks	1
Voltage - IEC	250V
Number of Ways	4
Safety Approval	UL; VDE; CSA
Header Orientation	Vertical
Height	12.6mm
Length	16.4mm
Width	7.25mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1843622 Product Details

1843622 Overview

The product comes in a package of Plug.The mounting type of the device is Through Hole.Packaging the product involves using a Bulk case.It is part of the COMBICON MCV Series of products.Through Hole represents the mounting point for the part.Several of the benefits of this part are also shared by other Header, Male Pins, Shrouded (4 Side) products.
