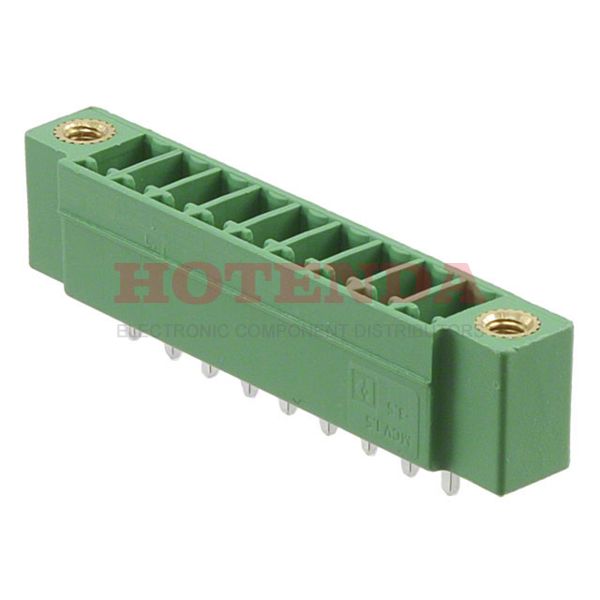

Name: 1843295
Brand: Phoenix Contact
SKU: 1843295
Price: 6.10000 USD
Availability: InStock

new-10%

1843295

Manufacturer part number:1843295

Manufacturer:Phoenix Contact

Description:1843295 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1843295 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2011
Series	COMBICON MCV
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	160V
Pitch	0.138 3.50mm
Insulation Height	0.362 9.20mm
Current Rating	8A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Number of Levels	1
Current	8A
Contact Mating Finish	Tin
Voltage - UL	300V
Number of Decks	1
Voltage - IEC	250V
Number of Ways	9
Safety Approval	UL
Header Orientation	Vertical
Number of Positions Per Level	9
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1843295 Product Details

1843295 Overview

There is a Through Hole mounting type for the device.Bulk cases are used to package the product.A member of the COMBICON MCV Series.Many aspects of its Mating and Mounting Flange feature increase its effectiveness.Through Hole is the mounting point for the part.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
