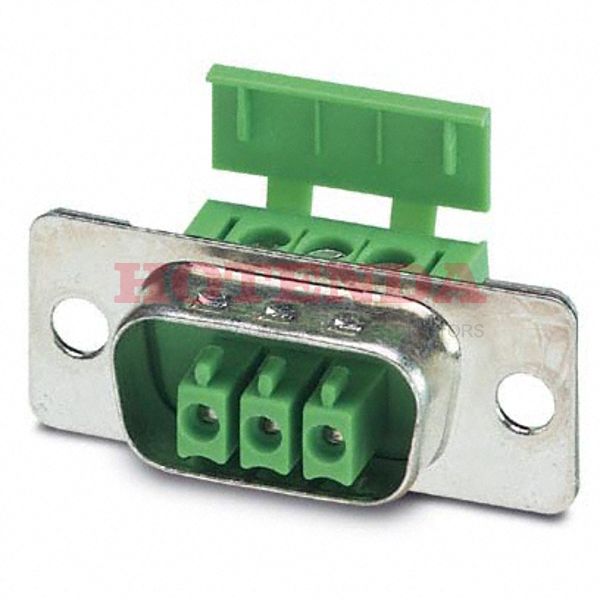

Name: 1841909
Brand: Phoenix Contact
SKU: 1841909
Price: 17.14000 USD
Availability: InStock

new

1841909

Manufacturer part number:1841909

Manufacturer:Phoenix Contact

Description:1841909 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1841909 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	5.329994g
Packaging	Bulk
Published	1999
Series	POWER SUBCON
JESD-609 Code	e3
Feature	DB9 Shape, Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	Plug
Type	Plug, Female Sockets
Number of Positions	3
Color	Green
Gender	Female
Voltage - Rated	250V
Contact Finish - Mating	TIN
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Orientation	Right Angle
Depth	16mm
Insulation Height	0.492 12.50mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CSA, cULus
Number of Contacts	3
UL Flammability Code	94V-0
Empty Shell	NO
Voltage	300V
Max Supply Voltage	250V
Shell Size	1/E
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Wire Gauge or Range - AWG	14-30 AWG
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Plug Wire Entry	180°
Insulation	Non-Insulated
Wire Gauge or Range - mm²	0.14-1.5mm2
Screw Size	M2
Height	16mm
Length	30.8mm
Width	30.8mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1841909 Product Details

1841909 Overview

A Plug packaging is included.This device's mounting type is Free Hanging (In-Line).In order to package the product, a Bulk case is used.As a product of the POWER SUBCON Series, it can be found in this category.In many ways, DB9 Shape, Mating Flange makes it more powerful.There's a Free Hanging, Panel mount on the part.This chip shouldn't have a voltage higher than 250V.This part shares lots of benefits with other Plug, Female Sockets products.
