Name: 1836683
Brand: Phoenix Contact
SKU: 1836683
Price: 3.19000 USD
Availability: InStock

new-10%

1836683

Manufacturer part number:1836683

Manufacturer:Phoenix Contact

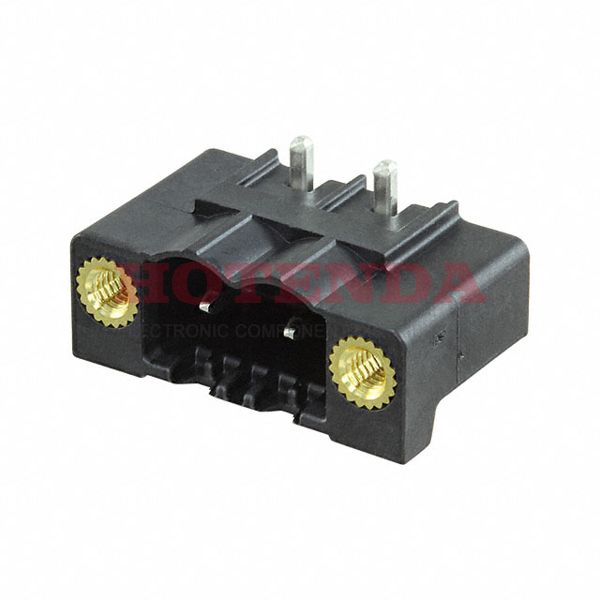

Description:Bulk 0.197 5.00mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON CC Liquid Crystal Polymer (LCP) Tin

Case Package:SOT-23

Datasheet:1836683 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-40°C
Packaging	Bulk
Series	COMBICON CC
Published	2017
Feature	Mating Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	2
Color	Black
Pitch	0.197 5.00mm
Insulation Height	0.298 7.57mm
Reach Compliance Code	not_compliant
Termination Style	Solder
Contact Tail Length	0.079 2.00mm
Number of Levels	1
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	16A
Header Orientation	90°, Right Angle
Current - IEC	12A
RoHS Status	Non-RoHS Compliant

1836683 Product Details

1836683 Overview

There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number COMBICON CC belongs to the COMBICON CC Series.In many ways, it is more powerful due to its Mating Flange feature.This device operates at a temperature of -40°C.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
