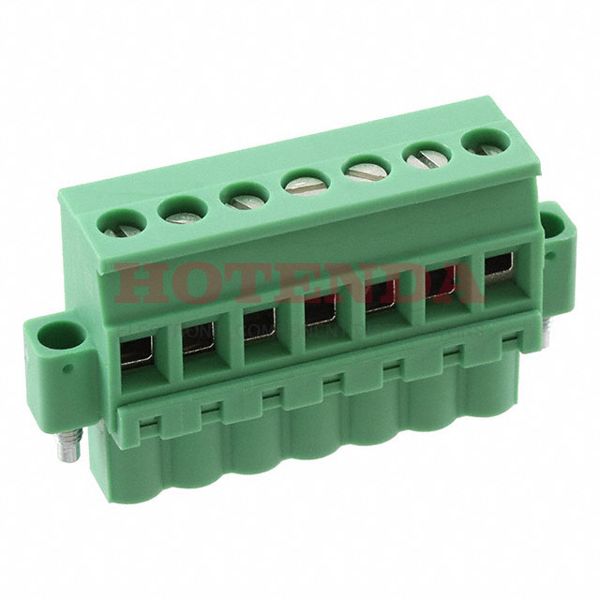

1834958

1834958

1834958

Phoenix Contact

1834958 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1834958 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 133.000002g
PackagingBulk
Published 2011
Series COMBICON MVSTBW
Feature Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 7
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional FeaturePA, 94V-0
HTS Code8536.69.40.40
Pitch 0.200 5.08mm
Orientation Straight
Insulation Height 1.024 26.01mm
Reach Compliance Code unknown
Current Rating12A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 7
Voltage 300V
Max Current Rating 12A
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 7
Safety Approval UL
Plug Wire Entry 270°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3
Wire Cross Section 2.5 mm2
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:759 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$8.783136$8.783136
10$8.285977$82.85977
100$7.816959$781.6959
500$7.374490$3687.245
1000$6.957066$6957.066

1834958 Product Details

1834958 Overview


This device has a Free Hanging (In-Line) mounting type.An Bulk case is utilized for packaging the product.As a product of the COMBICON MVSTBW Series, it can be found in this category.Additionally, there are other features such as PA, 94V-0.In many ways, its Mating Flange, Retention Latches (Non-Wire Side) feature makes it more powerful.There's a Free Hanging, Panel on the part.There are many benefits that this part shares with other Plug, Female Sockets products as well.

1834958 Features


COMBICON MVSTBW series

1834958 Applications


There are a lot of Phoenix Contact 1834958 Terminal Blocks applications.

  • Communication
  • Data Technology
  • LED municipal outdoor and street lighting
  • Embedded systems
  • Blowers
  • Energy efficient lighting (LED)
  • Medical technology
  • Industrial Automation
  • Instrumentation
  • Measuring & Control Technology
