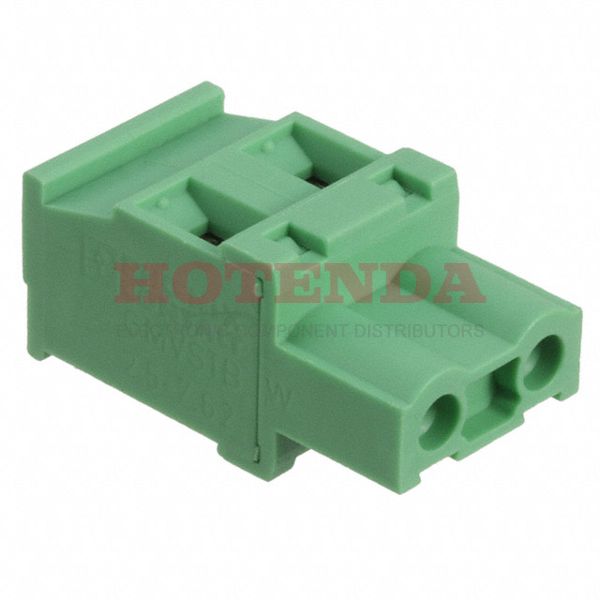

Name: 1832413
Brand: Phoenix Contact
SKU: 1832413
Price: 4.46000 USD
Availability: InStock

new-10%

1832413

Manufacturer part number:1832413

Manufacturer:Phoenix Contact

Description:1832413 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1832413 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	170.097139g
Packaging	Bulk
Published	2011
Series	COMBICON GMVSTBW
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Number of Positions	2
Color	Green
Number of Rows	1
Voltage - Rated	500V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Orientation	Straight
Depth	12.6mm
Insulation Height	1.024 26.01mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Max Supply Voltage	630V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	UL
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Height	13.2mm
Length	13.2mm
Width	26mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1832413 Product Details

1832413 Overview

Socket packaging is included.This device is mounted in the Free Hanging (In-Line) position.A Bulk case is used to package the product.A member of the COMBICON GMVSTBW Series.Further, there are features such as PA, 94V-0, to name only a few.With its Retention Latches (Non-Wire Side) feature, it is more powerful in many ways.Free Hanging represents the mounting point for the part.This chip should not be supplied with a voltage greater than 630V.As with other Plug, Female Sockets products, this part has a lot of benefits.
