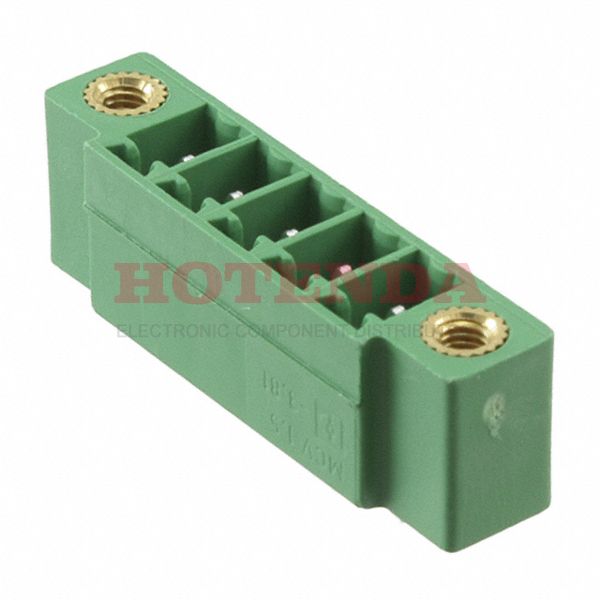

Name: 1830622
Brand: Phoenix Contact
SKU: 1830622
Price: 4.50000 USD
Availability: InStock

new-10%

1830622

Manufacturer part number:1830622

Manufacturer:Phoenix Contact

Description:1830622 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1830622 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2011
Series	COMBICON MCV
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	160V
Pitch	0.150 3.81mm
Orientation	Straight
Depth	7.25mm
Insulation Height	0.362 9.20mm
Current Rating	8A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Decks	1
Voltage - IEC	250V
Number of Ways	5
Safety Approval	UL
Header Orientation	Vertical
Number of Positions Per Level	5
Height	12.7mm
Length	29.44mm
Width	7.25mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1830622 Product Details

1830622 Overview

A Plug packaging is included.Through Hole is the mounting type of the device.We pack the product in a Bulk case.The product is a part of the COMBICON MCV Series.A number of benefits can be derived from the Mating and Mounting Flange feature of this application.Through Hole is the mounting point for the part.In addition to its benefits, this part also shares many with the other products in the Header, Male Pins, Shrouded (4 Side) series.
