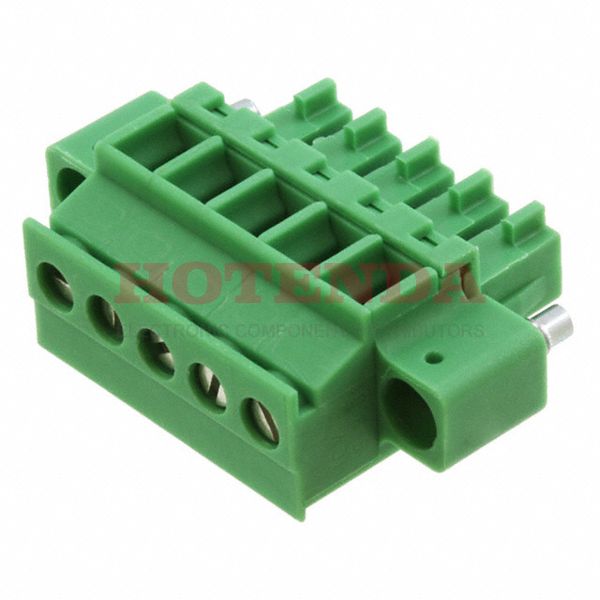

Name: 1828375
Brand: Phoenix Contact
SKU: 1828375
Price: 6.61000 USD
Availability: InStock

new-10%

1828375

Manufacturer part number:1828375

Manufacturer:Phoenix Contact

Description:1828375 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1828375 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	100.999996g
Packaging	Bulk
Published	2011
Series	COMBICON MCVR
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PA, 94V-0
Pitch	0.150 3.81mm
Orientation	Straight
Depth	19.1mm
Insulation Height	0.752 19.10mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	5
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	5
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	7mm
Screw Size	M2
Height	12.5mm
Length	29.44mm
Width	29.44mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1828375 Product Details

1828375 Overview

A Screw, Socket packaging is included.Free Hanging (In-Line) is the mounting type for the device.Packaged in a Bulk case.Specifically, it is one of the products in the COMBICON MCVR Series.Further, there are features such as PA, 94V-0, to name only a few.It is more powerful in many ways due to its Mating Flange feature.Free Hanging, Panel is the mounting point for the part.There should be no voltage above 0 on the supply line for this chip.There are a lot of similarities between this part and other Plug, Female Sockets products.
