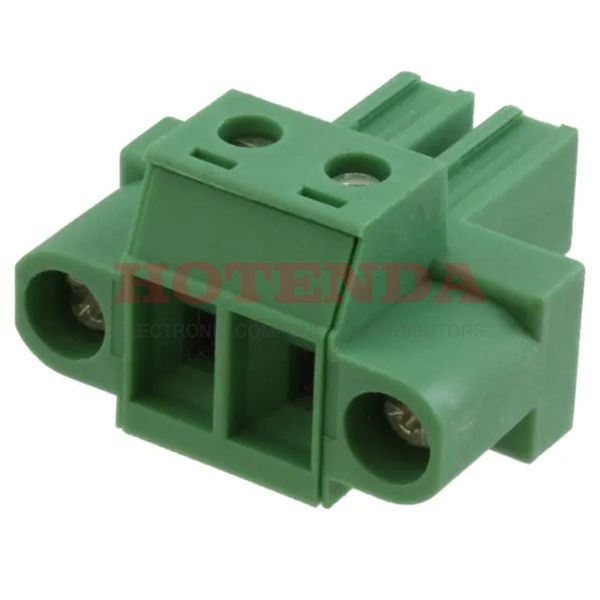

Name: 1828249
Brand: Phoenix Contact
SKU: 1828249
Price: 5.81000 USD
Availability: InStock

new-10%

1828249

Manufacturer part number:1828249

Manufacturer:Phoenix Contact

Description:1828249 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1828249 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	1.50003kg
Packaging	Bulk
Published	2011
Series	COMBICON PC
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	400V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Orientation	Right Angle
Depth	30.7mm
Insulation Height	0.713 18.10mm
Reach Compliance Code	not_compliant
Current Rating	20A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	400V
Number of Contacts	2
Voltage	600V
Max Supply Voltage	400V
Max Current Rating	20A
Number of Levels	1
Current	20A
Wire Gauge (Max)	10 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	10-30 AWG
Current - UL	5A
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-4mm2
Wire Strip Length	7mm
Screw Size	M3
Height	30.46mm
Length	30.46mm
Width	30.7mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1828249 Product Details

1828249 Overview

The product comes in a package of Screw, Socket.The mounting type of the device is Free Hanging (In-Line).We pack the product in a Bulk case.Product number COMBICON PC belongs to the COMBICON PC Series.Furthermore, there are other features available, such as PA, 94V-0, to name a few.A number of features make it more powerful because of its Mating Flange feature.Free Hanging, Panel is used to mount the part.Ensure that this chip's supply voltage does not exceed 400V volts.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
