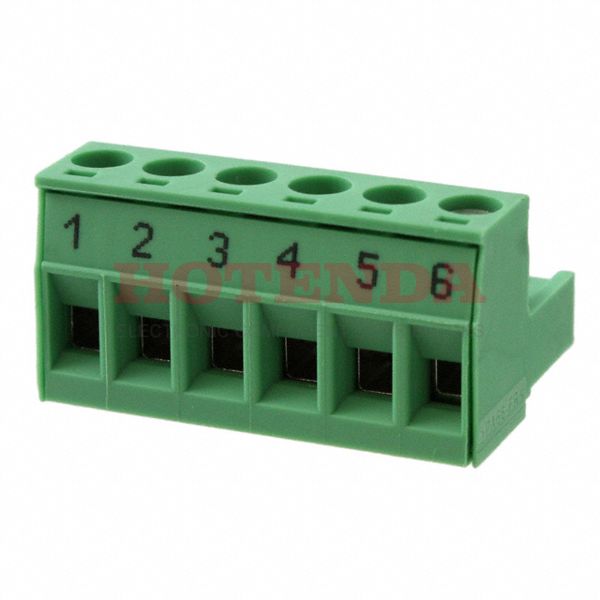

Name: 1828090
Brand: Phoenix Contact
SKU: 1828090
Price: 6.80000 USD
Availability: InStock

new-10%

1828090

Manufacturer part number:1828090

Manufacturer:Phoenix Contact

Description:1828090 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1828090 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Plating	Tin
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Weight	1.000171kg
Packaging	Bulk
Published	2010
Series	COMBICON MSTB
Feature	Positions Stamped, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	6
Color	Green
Voltage - Rated	250V
Pitch	0.197 5.00mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Poles	6
Wire Gauge or Range - AWG	12-30 AWG
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Safety Approval	UL; VDE; CSA
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M3
Stripping Length	7mm
Height	18.2mm
Length	25mm
Width	30mm
RoHS Status	RoHS Compliant

1828090 Product Details

1828090 Overview

It comes in Screw, Socket packaging.Mounting type Free Hanging (In-Line) is selected for the device.To package the product, a Bulk case is used.Specifically, it is one of the products in the COMBICON MSTB Series.A number of features make the Positions Stamped, Retention Latches (Non-Wire Side) feature more powerful.Free Hanging, Plug-In represents the mounting point for the part.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
