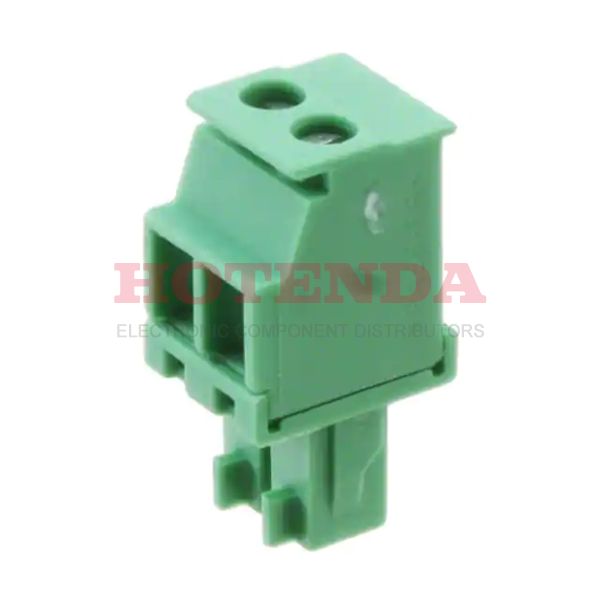

1827127

1827127

Phoenix Contact

1827127 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1827127 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Contact PlatingTin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Nylon
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 99.999994g
PackagingBulk
Published 2001
Series COMBICON MCVR
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Additional FeaturePA, 94V-0
HTS Code8536.69.40.40
Voltage - Rated DC 160V
Pitch 0.150 3.81mm
Orientation Straight
Depth 10.4mm
Insulation Height 0.752 19.10mm
Current Rating8A
Termination Style Screw - Rising Cage Clamp
Voltage - Rated AC 160V
Approval Agency CB, CSA, UL, VDE, cULus
Lead Pitch 3.81mm
Number of Contacts 2
Voltage 300V
Max Supply Voltage160V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 28 AWG
Wire/Cable Gauge 28 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 2
Safety Approval CB; CSA; CUL; EAC; EN; UL; VDE
Plug Wire Entry 90°
Wire Gauge or Range - mm² 0.14-1.5mm2
Screw Size M2
Stripping Length 7mm
Height 10.4mm
Length 8.41mm
Width 10.4mm
Thickness 3.81mm
Material Flammability Rating UL94 V-0
Radiation HardeningNo
REACH SVHC No SVHC
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:2867 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$2.39000$2.39
10$2.32600$23.26
50$2.17360$108.68
100$1.99960$199.96
250$1.84748$461.87
500$1.76054$880.27

1827127 Product Details

1827127 Description


The 1827127 is a Header.



1827127 Features


  • Nominal current: 8 A

  • Nom. voltage: 160 V

  • Pitch: 3.81 mm

  • Number of positions: 2

  • Colour: green

  • Assembly: Soldering



1827127 Applications


  • Industrial
