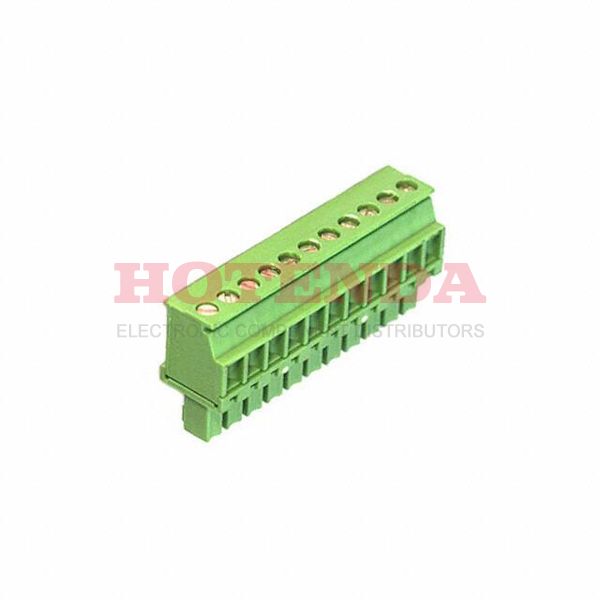

1827062

1827062

1827062

Phoenix Contact

1827062 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1827062 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact MaterialTin
Contact PlatingTin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 100.999996g
PackagingBulk
Published 2010
Series COMBICON MCVW
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 11
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 160V
Pitch 0.150 3.81mm
Orientation Straight
Depth 19.1mm
Insulation Height 0.752 19.10mm
Current Rating8A
Termination Style Screw - Rising Cage Clamp
Approval Agency CB, CSA, UL, VDE, cULus
Number of Contacts 11
Housing Color Green
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 28 AWG
Number of Poles 11
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 14-30 AWG
Current - UL 8A
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Positions Per Level 11
Plug Wire Entry 270°
Wire Gauge or Range - mm² 0.14-1.5mm2
Wire Strip Length 7mm
Current - IEC 8A
Number of Positions Per Level 11
Screw Size M2
Stripping Length 7mm
Height 12.5mm
Length 42.7mm
Width 10.4mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:614 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$13.005234$13.005234
10$12.269089$122.69089
100$11.574612$1157.4612
500$10.919445$5459.7225
1000$10.301364$10301.364

1827062 Product Details

1827062 Overview


The product comes in a package of Screw, Socket.This device's mounting type is Free Hanging (In-Line).We package the product with a Bulk case.Specifically, it is one of the products in the COMBICON MCVW Series.There's a Cable, Free Hanging mount on the part.Many Plug, Female Sockets products share the same benefits as this part.

1827062 Features


COMBICON MCVW series

1827062 Applications


There are a lot of Phoenix Contact 1827062 Terminal Blocks applications.

  • Control panels
  • Data Technology
  • Anywhere power is distributed
  • Datacom
  • Communication
  • Medical technology
  • Automotive Electronics
  • Transportation
  • Telecommunications
  • Refrigeration control
