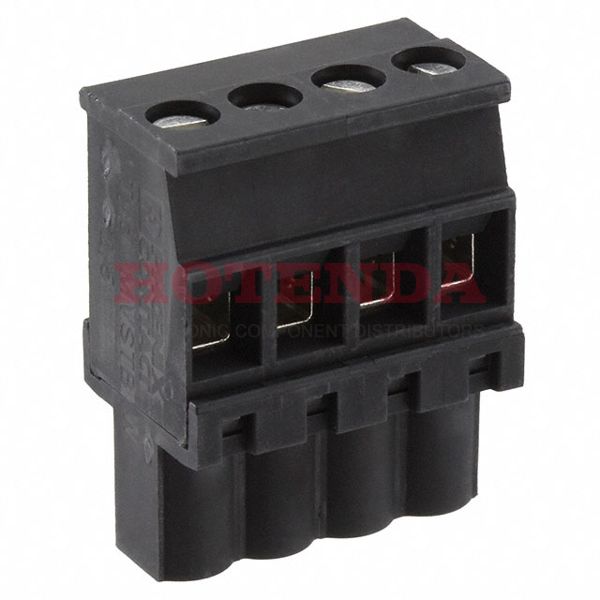

Name: 1826432
Brand: Phoenix Contact
SKU: 1826432
Price: 4.91000 USD
Availability: InStock

new-10%

1826432

Manufacturer part number:1826432

Manufacturer:Phoenix Contact

Description:1826432 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1826432 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	1.59982kg
Packaging	Bulk
Published	2011
Series	COMBICON MVSTBW
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Number of Positions	4
Color	Black
Number of Rows	1
Voltage - Rated	250V
Pitch	0.197 5.00mm
Insulation Height	0.496 12.60mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	250V
Number of Levels	1
Current	12A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	4
Safety Approval	CB; CSA; GOST; UL; VDE
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	20mm
Length	12.6mm
Width	26mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Lead Free	Lead Free

1826432 Product Details

1826432 Overview

Packaging is Socket.This device has a Free Hanging (In-Line) mounting type.In order to package the product, a Bulk case is used.It's from the COMBICON MVSTBW Series.In many ways, its Retention Latches (Non-Wire Side) feature makes it more powerful.In this case, Free Hanging mounts the part.In addition to its benefits, this part also shares many with the other products in the Plug, Female Sockets series.
