Name: 1826351
Brand: Phoenix Contact
SKU: 1826351
Price: 13.24000 USD
Availability: InStock

new

1826351

Manufacturer part number:1826351

Manufacturer:Phoenix Contact

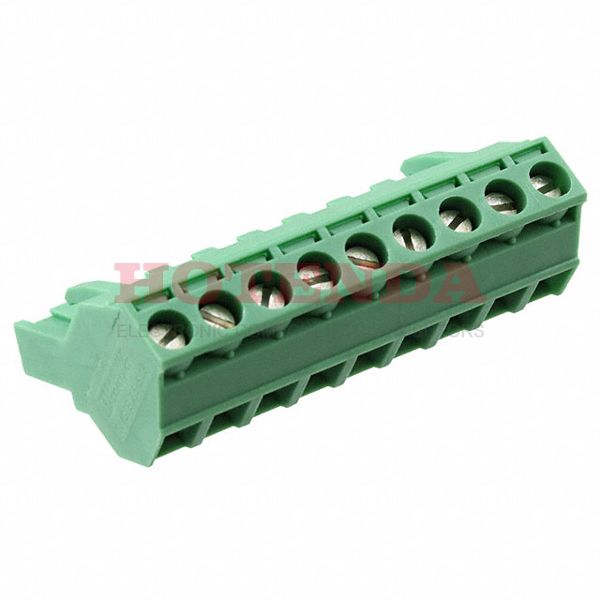

Description:Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON SMSTB Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1826351 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	131g
Packaging	Bulk
Series	COMBICON SMSTB
Published	2010
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Pitch	0.200 5.08mm
Orientation	Straight
Depth	15.5mm
Insulation Height	0.610 15.49mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CSA, UL, cULus
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	9
Safety Approval	UL
Plug Wire Entry	225°
Wire Gauge or Range - mm²	0.2-2.5mm2
Number of Positions Per Level	9
Screw Size	M3
Stripping Length	7mm
Wire Cross Section	2.5 mm2
Height	25.6mm
Length	15.5mm
Width	45.72mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1826351 Product Details

1826351 Overview

The product is packaged in Screw, Socket.This device is mounted in the Free Hanging (In-Line) position.It has been determined that a Bulk case is necessary to package the product.There is a product in the COMBICON SMSTB Series.There are a number of advantages to its Retention Latches (Non-Wire Side) feature.Part Cable, Free Hanging, Plug-In is mounted to the part.With this part, you get a lot of benefits that you won't find in other Plug, Female Sockets products.
