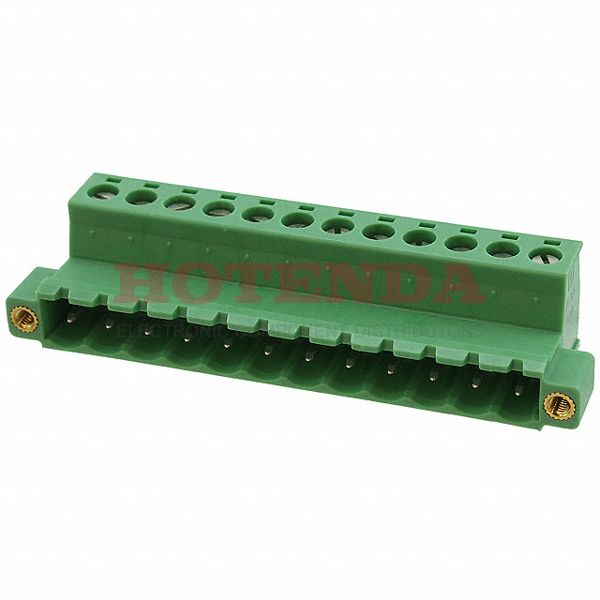

Name: 1825608
Brand: Phoenix Contact
SKU: 1825608
Price: 23.46000 USD
Availability: InStock

new

1825608

Manufacturer part number:1825608

Manufacturer:Phoenix Contact

Description:1825608 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1825608 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Free Hanging, Panel, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	137.000006g
Packaging	Bulk
Published	2011
Series	COMBICON IC
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Plug, Screw
Type	Plug, Male Pins
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	19.2mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	12
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	12A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	10A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	12
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	19.2mm
Length	71.08mm
Width	71.08mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1825608 Product Details

1825608 Overview

The product is packaged in Plug, Screw.Its mounting type is Free Hanging (In-Line).It's packaged in a Bulk case.The product is a part of the COMBICON IC Series.Among other features are PA, 94V-0, to name only a few.There are a number of advantages to its Mating Flange feature.There's a Free Hanging, Panel, Plug-In on the part.It is recommended that the supply voltage of this chip not exceed 250V.Several of the benefits of this part are also shared by other Plug, Male Pins products.
