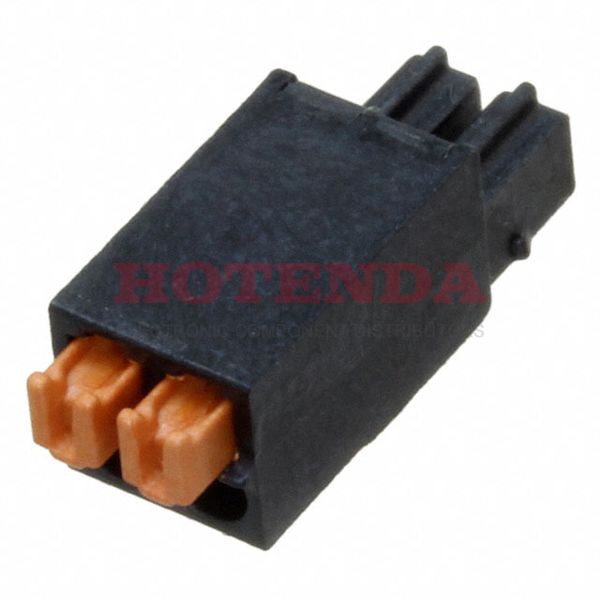

Name: 1821096
Brand: Phoenix Contact
SKU: 1821096
Price: 4.63000 USD
Availability: InStock

new-10%

1821096

Manufacturer part number:1821096

Manufacturer:Phoenix Contact

Description:1821096 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1821096 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP)
Packaging	Bulk
Published	2017
Series	MICRO-COMBICON FMC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
Type	Plug, Female Sockets
Number of Positions	2
Color	Black
Pitch	0.100 2.54mm
Insulation Height	0.213 5.40mm
Termination Style	Screwless - Leg Spring, Push-In Spring
Voltage	150V
Number of Levels	1
Current	6A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	20 AWG
Contact Mating Finish	Gold
Wire Gauge or Range - AWG	20-26 AWG
Voltage - IEC	160V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-0.5mm2
Wire Strip Length	7mm
Number of Positions Per Level	2
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1821096 Product Details

1821096 Overview

This device has a Through Hole mounting type.Packaging for the product is carried out via a Bulk case.MICRO-COMBICON FMC Series product.It's mounted by Through Hole.There are a lot of similarities between this part and other Plug, Female Sockets products.
