Name: 1809831
Brand: Phoenix Contact
SKU: 1809831
Price: 6.27000 USD
Availability: InStock

new-10%

1809831

Manufacturer part number:1809831

Manufacturer:Phoenix Contact

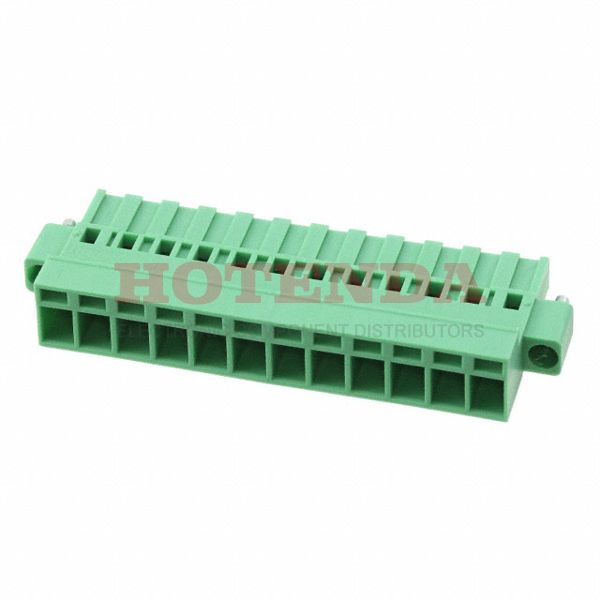

Description:Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug Housing for Female Sockets COMBICON MSTBC Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1809831 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Series	COMBICON MSTBC
Published	2010
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Crimp
Type	Plug Housing for Female Sockets
Number of Positions	12
Color	Green
Number of Rows	1
Voltage - Rated	320V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	0.413 10.49mm
Current Rating	12A
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	14 AWG
Wire Gauge (Min)	20 AWG
Number of Decks	1
Wire Gauge or Range - AWG	14-20 AWG
Voltage - IEC	630V
Number of Ways	12
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.5-2.5mm2
Current - IEC	12A
Wire Cross Section	2.5 mm2
Height	10.5mm
Length	14.74mm
Width	25mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1809831 Product Details

1809831 Overview

It comes in Crimp packaging.The device's mounting type is Free Hanging (In-Line).In order to package the product, a Bulk case is used.It belongs to the COMBICON MSTBC Series of products.In addition, there are other features such as PA, 94V-0, to mention only a few.Its Mating Flange feature renders it more powerful in many ways.The part is mounted by Free Hanging.This part shares lots of benefits with other Plug Housing for Female Sockets products.
