Name: 1808874
Brand: Phoenix Contact
SKU: 1808874
Price: 3.51000 USD
Availability: InStock

new-10%

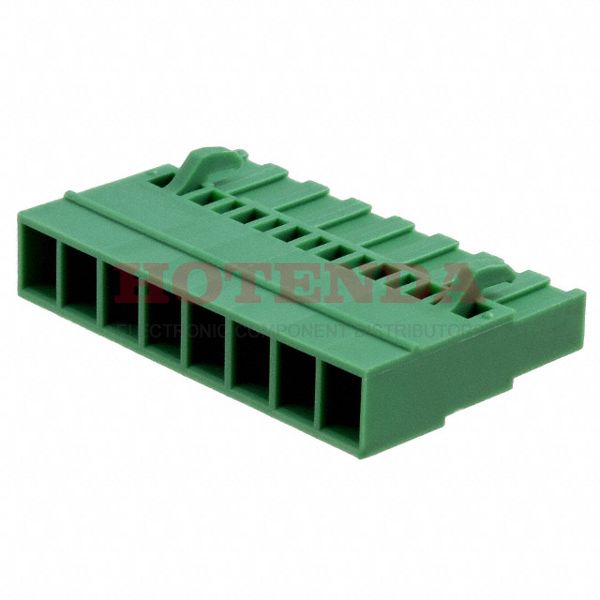

1808874

Manufacturer part number:1808874

Manufacturer:Phoenix Contact

Description:1808874 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1808874 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2011
Series	COMBICON MSTBC
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Crimp
ECCN Code	EAR99
Connector Type	Crimp, Socket
Type	Plug Housing for Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	320V
Additional Feature	PA, 94V-0
Pitch	0.200 5.08mm
Orientation	Straight
Depth	25mm
Insulation Height	0.394 10.00mm
Reach Compliance Code	unknown
Current Rating	12A
Voltage	300V
Max Supply Voltage	320V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	20 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Wire Gauge or Range - AWG	14-20 AWG
Voltage - IEC	630V
Number of Ways	8
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Number of Positions Per Level	8
Wire Cross Section	2.5 mm2
Height	25mm
Length	40.39mm
Width	25mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1808874 Product Details

1808874 Overview

You'll get Crimp, Socket packages.There is a Free Hanging (In-Line) mounting type for the device.A Bulk case is used for packaging.As a product of the COMBICON MSTBC Series, it can be found in this category.In addition, there are other features such as PA, 94V-0, to mention only a few.Its Retention Latches (Non-Wire Side) feature renders it more powerful in many ways.By Free Hanging, Plug-In it's mounted.A voltage greater than 320V should not be applied to this chip.In addition to its benefits, this part also shares many with the other products in the Plug Housing for Female Sockets series.
