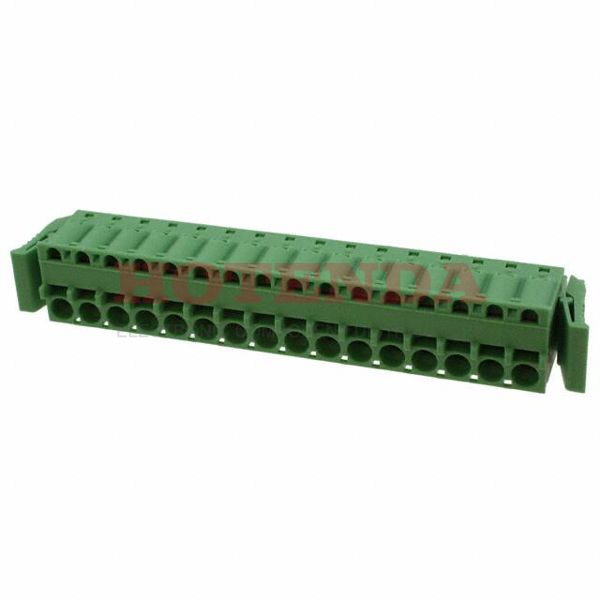

Name: 1808705
Brand: Phoenix Contact
SKU: 1808705
Price: 14.01000 USD
Availability: InStock

new

1808705

Manufacturer part number:1808705

Manufacturer:Phoenix Contact

Description:1808705 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1808705 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2013
Series	COMBICON FKCS
Feature	Latch Lock, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
Type	Plug, Female Sockets
Number of Positions	16
Color	Green
Voltage - Rated	250V
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screwless - Push-In Spring
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Current - IEC	12A
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1808705 Product Details

1808705 Overview

Mounting type Free Hanging (In-Line) is assigned to the device.It has been determined that a Bulk case is necessary to package the product.This is from the COMBICON FKCS Series.A number of benefits can be derived from the Latch Lock, Retention Latches (Non-Wire Side) feature of this application.Free Hanging mounts the part.The benefts of this part are similar to those of other Plug, Female Sockets products.
