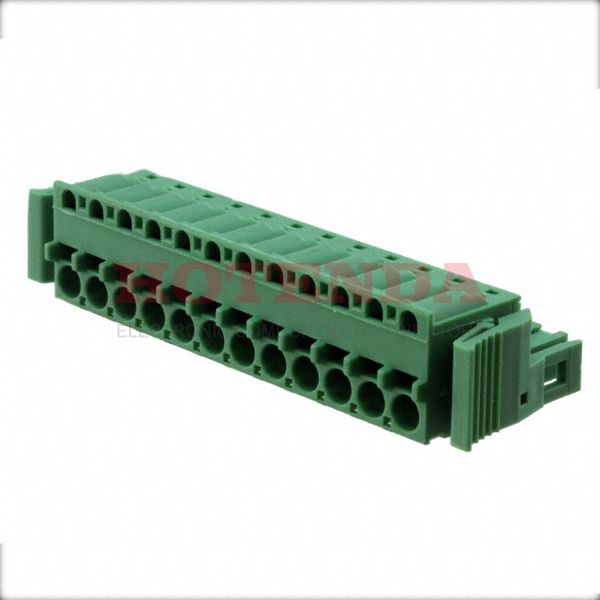

Name: 1808666
Brand: Phoenix Contact
SKU: 1808666
Price: 10.35000 USD
Availability: InStock

new

1808666

Manufacturer part number:1808666

Manufacturer:Phoenix Contact

Description:1808666 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1808666 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2013
Series	COMBICON FKCS
Feature	Latch Lock, Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Number of Positions	12
Color	Green
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Termination Style	Screwless - Push-In Spring
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Current - IEC	12A
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1808666 Product Details

1808666 Overview

This device has a Free Hanging (In-Line) mounting type.Packaged in a Bulk case.COMBICON FKCS Series product.A number of features make the Latch Lock, Retention Latches (Non-Wire Side) feature more powerful.Mounting of the part is based on Free Hanging.There are a lot of similarities between this part and other Plug, Female Sockets products.
