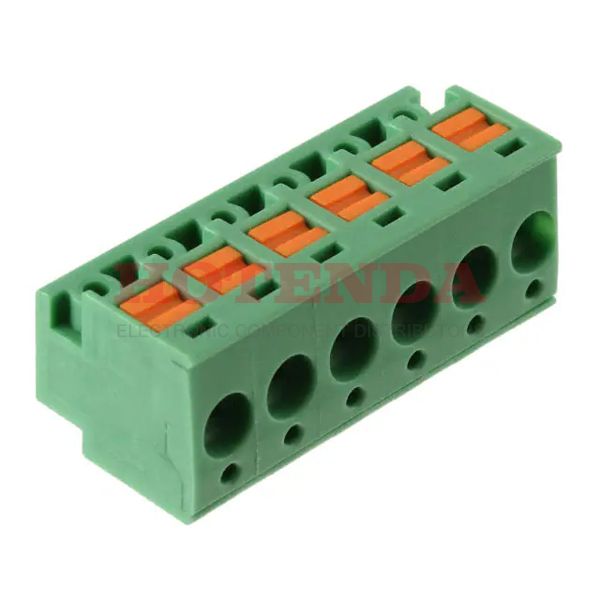

Name: 1805559
Brand: Phoenix Contact
SKU: 1805559
Price: 1.71000 USD
Availability: InStock

new-10%

1805559

Manufacturer part number:1805559

Manufacturer:Phoenix Contact

Description:1805559 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1805559 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2013
Series	COMBICON PTS
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug for Unshrouded Header
Color	Green
Gender	Female
Voltage - Rated	250V
Pitch	0.197 5.00mm
Orientation	Horizontal
Depth	11.7mm
Insulation Height	0.461 11.70mm
Current Rating	10A
Termination Style	Screwless - Spring Cage, Tension Clamp
Number of Levels	1
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Wire Gauge or Range - AWG	14-26 AWG
Voltage - IEC	600V
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	8mm
Number of Positions Per Level	6
Height	12.8mm
Length	11.7mm
Width	30mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1805559 Product Details

1805559 Overview

Socket packaging is included.Its mounting type is Free Hanging (In-Line).The product is packaged in a Bulk case.This product is in the COMBICON PTS Series.There is a Cable, Free Hanging mount on the part.There are many benefits shared between this part and other Plug for Unshrouded Header products.
