Name: 1804849
Brand: Phoenix Contact
SKU: 1804849
Price: 13.31000 USD
Availability: InStock

new

1804849

Manufacturer part number:1804849

Manufacturer:Phoenix Contact

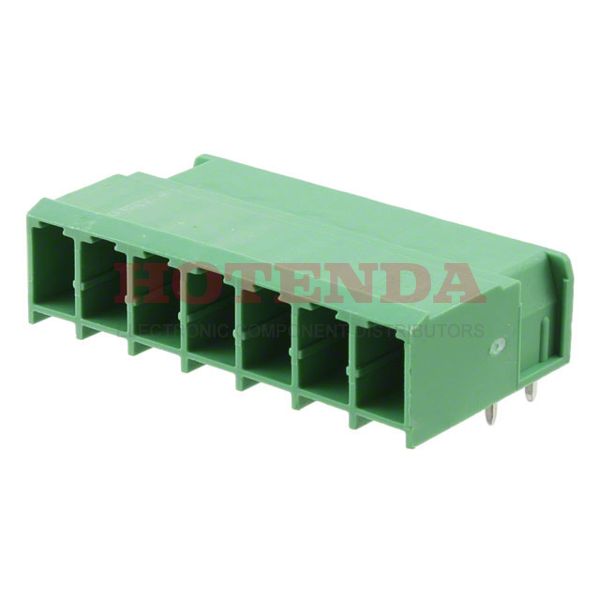

Description:Bulk 0.300 7.62mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON PC Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1804849 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	907.18474g
Packaging	Bulk
Series	COMBICON PC
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	400V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Orientation	Right Angle
Depth	29mm
Insulation Height	1.142 29.00mm
Current Rating	20A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.197 5.00mm
Max Current Rating	20A
Number of Levels	1
Current	20A
Number of Decks	1
Voltage - IEC	630V
Number of Ways	7
Safety Approval	UL
Header Orientation	90°, Right Angle
Number of Positions Per Level	7
Height	29mm
Length	53.32mm
Width	53.32mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1804849 Product Details

1804849 Overview

It comes in Plug packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the COMBICON PC Series of products.In addition, there are other features such as PA, 94V-0, to mention only a few.The part is mounted by Through Hole.This part shares lots of benefits with other Header, Male Pins, Shrouded (4 Side) products.
