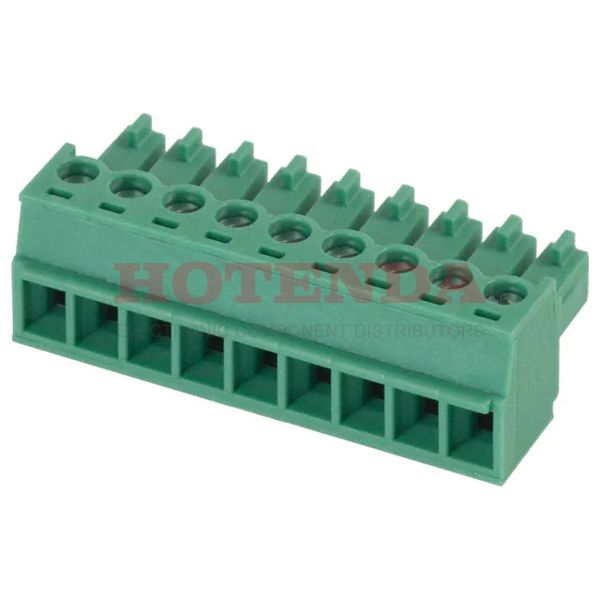

Name: 1803646
Brand: Phoenix Contact
SKU: 1803646
Price: 11.01000 USD
Availability: InStock

new

1803646

Manufacturer part number:1803646

Manufacturer:Phoenix Contact

Description:1803646 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1803646 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	97.999992g
Packaging	Bulk
Published	2001
Series	COMBICON MC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated DC	160V
Pitch	0.150 3.81mm
Orientation	Right Angle
Depth	16.1mm
Insulation Height	0.437 11.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	160V
Approval Agency	CB, CSA, UL, VDE, cULus
Number of Contacts	9
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	28 AWG
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	9
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Screw Size	M2
Stripping Length	7mm
Height	11.1mm
Length	35.08mm
Width	16.1mm
Thickness	30.48mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1803646 Product Details

1803646 Overview

Packaging is Screw, Socket.It's mounted Free Hanging (In-Line).Bulk cases are used to package the product.The product is part of the COMBICON MC Series.By Cable, Free Hanging, Plug-In, the part is mounted.This chip's supply voltage should not exceed 160V.With this part, you get a lot of benefits that you won't find in other Plug, Female Sockets products.
