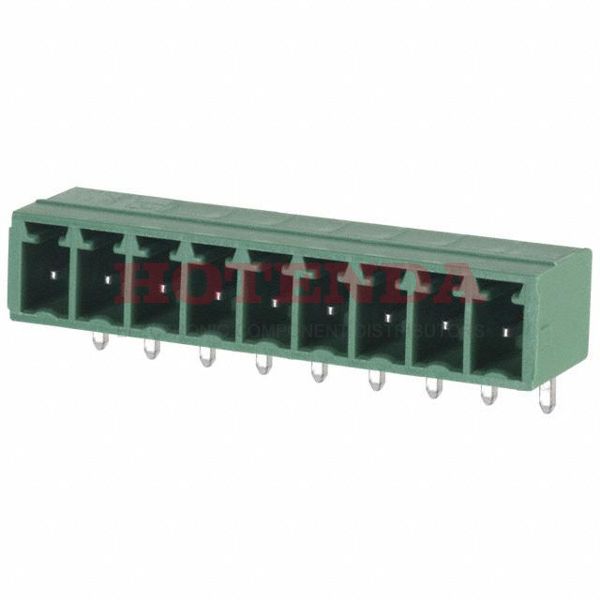

Name: 1803345
Brand: Phoenix Contact
SKU: 1803345
Price: 4.05000 USD
Availability: InStock

new-10%

1803345

Manufacturer part number:1803345

Manufacturer:Phoenix Contact

Description:1803345 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1803345 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2001
Series	COMBICON MC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated DC	640mV
Pitch	0.150 3.81mm
Orientation	Right Angle
Depth	9.2mm
Insulation Height	0.285 7.25mm
Current Rating	8A
Termination Style	Solder
Voltage - Rated AC	160V
Approval Agency	CSA, UL
Lead Pitch	3.81mm
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Poles	9
Number of Decks	1
Voltage - IEC	250V
Number of Ways	9
Safety Approval	UL
Header Orientation	90°, Right Angle
Height	7.4mm
Length	35.68mm
Width	35.68mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1803345 Product Details

1803345 Overview

The product comes in a package of Plug.Mounting type Through Hole is assigned to the device.We package the product with a Bulk case.The product is a member of the COMBICON MC Series.A minimum temperature of -40°C is needed for this device.By Through Hole it's mounted.Several of the benefits of this part are also shared by other Header, Male Pins, Shrouded (4 Side) products.
