1790577

1790577

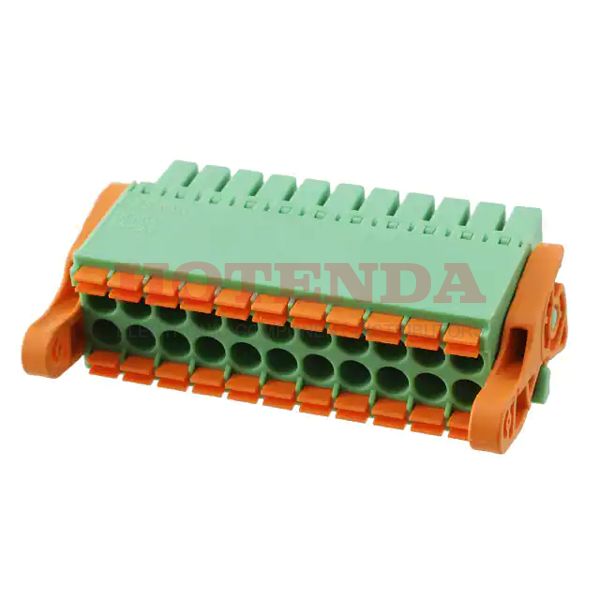

1790577

Phoenix Contact

1790577 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1790577 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 17 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
PackagingBulk
Published 2013
Series COMBICON DFMC
Feature Ejector Latches
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 22
Color Green
Number of Rows 2
Voltage - Rated 160V
Additional FeatureSTANDARD: UL 94V-0, PA
HTS Code8536.69.40.40
Pitch 0.138 3.50mm
Insulation Height 0.522 13.25mm
Current Rating8A
Termination Style Screwless - Push-In Spring
Voltage 150V
Number of Levels 2
Current 8A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 250V
Positions Per Level 11
Number of Ways 11
Safety Approval CB; CUL; UL; VDE
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-1.5mm2
Wire Strip Length 10mm
Fastening Method SPRING LOADED
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
In-Stock:418 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$18.226381$18.226381
10$17.194699$171.94699
100$16.221414$1622.1414
500$15.303220$7651.61
1000$14.437001$14437.001

1790577 Product Details

1790577 Overview


The product comes in a package of Screw.Free Hanging (In-Line) is the mount type.Packaging the product involves using a Bulk case.It's from the COMBICON DFMC Series.To name a few, there is also STANDARD: UL 94V-0, PA.Its Ejector Latches feature renders it more powerful in many ways.The part is mounted by Free Hanging.The benefts of this part are similar to those of other Plug, Female Sockets products.

1790577 Features


COMBICON DFMC series

1790577 Applications


There are a lot of Phoenix Contact 1790577 Terminal Blocks applications.

  • Anywhere power is distributed
  • Measuring & Control Technology
  • Communication
  • Electrical substations
  • Industrial Automation
  • Medical technology
  • Telecommunications
  • Instrumentation
  • Automotive Electronics
  • Datacom
