Name: 1787564
Brand: Phoenix Contact
SKU: 1787564
Price: 15.63000 USD
Availability: InStock

new

1787564

Manufacturer part number:1787564

Manufacturer:Phoenix Contact

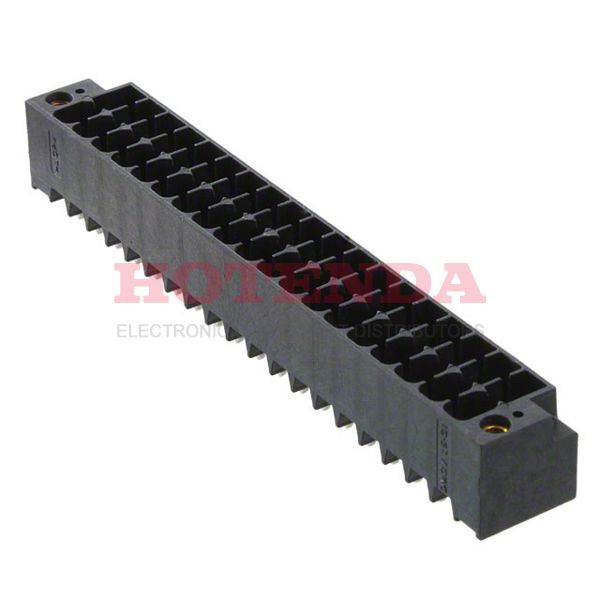

Description:Bulk 0.138 3.50mm Black 2 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON DMCV Liquid Crystal Polymer (LCP)

Case Package:SOT-23

Datasheet:1787564 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP)
Packaging	Bulk
Series	COMBICON DMCV
Published	2012
Feature	Mating and Mounting Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	38
Color	Black
Voltage - Rated	160V
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Insulation Height	0.394 10.00mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Solder
Voltage	150V
Contact Tail Length	0.079 2.00mm
Number of Levels	2
Current	8A
Voltage - IEC	250V
Positions Per Level	19
Header Orientation	Vertical
Height	12mm
Length	10.6mm
Width	73.5mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1787564 Product Details

1787564 Overview

This product is packaged in a Plug cartonThis device's mounting type is Through Hole.It's packaged in a Bulk case.COMBICON DMCV Series product.Its Mating and Mounting Flange feature makes it more powerful in a number of ways.Through Hole is mounting the part.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
