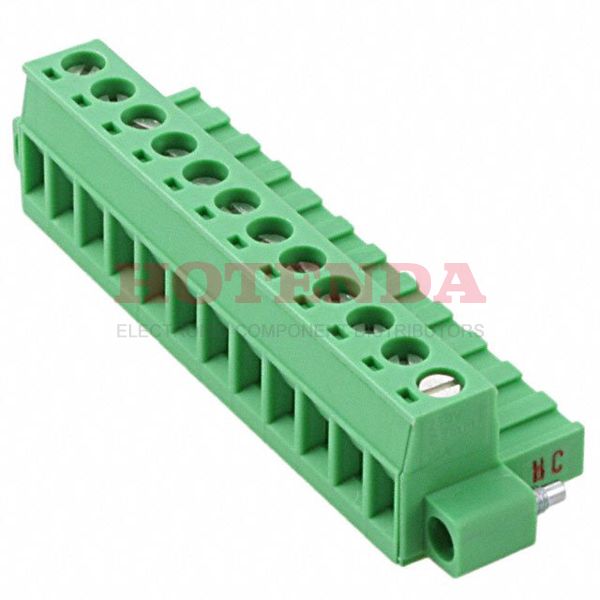

Phoenix Contact

1786938 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1786938 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 11 Weeks
Contact PlatingTin
Mount Free Hanging, Plug-In
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 350.000009g
PackagingBulk
Published 2012
Series COMBICON MSTB
Feature Mating Flange
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 250V
Additional FeaturePA, 94V-0
HTS Code8536.69.40.40
Pitch 0.197 5.00mm
Orientation Straight
Depth 15mm
Insulation Height 0.591 15.00mm
Reach Compliance Code unknown
Current Rating12A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 12A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Current - UL 15A
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 12
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 7mm
Number of Positions Per Level 12
Screw Size M3
Wire Cross Section 2.5 mm2
Height 18.2mm
Length 15mm
Width 70.01mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:552 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$14.23000$14.23
10$13.84100$138.41
50$12.93600$646.8
100$11.90120$1190.12
250$10.99564$2748.91
500$10.47822$5239.11

1786938 Product Details

1786938 Overview


It comes in a Screw, Socket package.Free Hanging (In-Line) is the mounting type for the device.It has been determined that a Bulk case is necessary to package the product.COMBICON MSTB Series product.As well as PA, 94V-0, to name a few.As a result of its Mating Flange feature, it possesses a great deal of power.You've got Free Hanging, Plug-In mounted on the part.Other Plug, Female Sockets products benefit from this part as well.

1786938 Features


COMBICON MSTB series

1786938 Applications


There are a lot of Phoenix Contact 1786938 Terminal Blocks applications.

  • Measuring & Control Technology
  • Instrumentation
  • Variable speed/frequency drivers
  • Telecommunications
  • Energy efficient lighting (LED)
  • Military Technology
  • All Electrical Machinery
  • Communication
  • Transportation
  • Data Technology
