Name: 1784871
Brand: Phoenix Contact
SKU: 1784871
Price: 39.73000 USD
Availability: InStock

new

1784871

Manufacturer part number:1784871

Manufacturer:Phoenix Contact

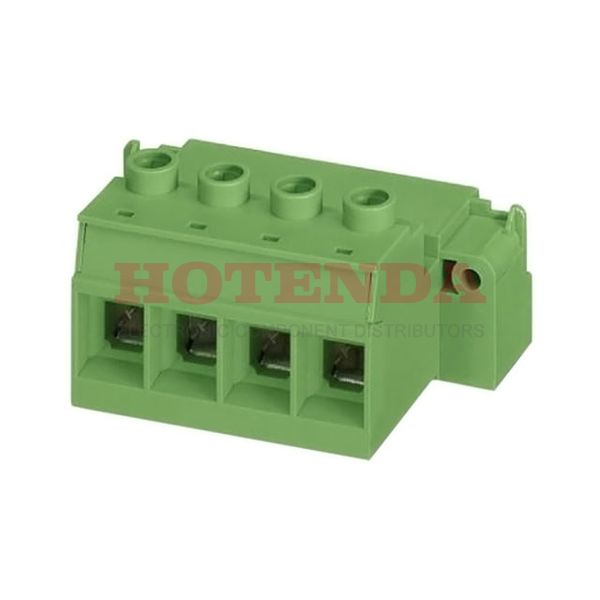

Description:Bulk 0.591 15.00mm Green 1 Levels Free Hanging (In-Line) Plug, Blade Pins COMBICON IPC Polyamide (PA), Nylon Silver Brass

Case Package:SOT-23

Datasheet:1784871 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Brass
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Silver
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Series	COMBICON IPC
Published	2013
Feature	Mating Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Blade Pins
Color	Green
Gender	Female
Voltage - Rated	1kV
Pitch	0.591 15.00mm
Orientation	Vertical
Depth	40mm
Insulation Height	1.642 41.70mm
Current Rating	125A
Termination Style	Screw - Rising Cage Clamp
Housing Color	Natural
Voltage	600V
ELV	Compliant
Number of Levels	1
Current	115A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	2 AWG
Contact Mating Finish	Silver
Wire Gauge or Range - AWG	2-16 AWG
Voltage - IEC	1kV
Torque - Screw	2.5-4.5 Nm (22.1-39.8 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.5-35mm2
Wire Strip Length	20mm
Current - IEC	125A
Number of Positions Per Level	4
Screw Size	M5
Length	58mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1784871 Product Details

1784871 Overview

Packaging for this item is Screw.There is a mounting type of Free Hanging (In-Line) for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the COMBICON IPC Series.In many ways, its Mating Flange feature makes it more powerful.Free Hanging is used to mount the part.There are a number of benefits that this part has in common with other Plug, Blade Pins products.
