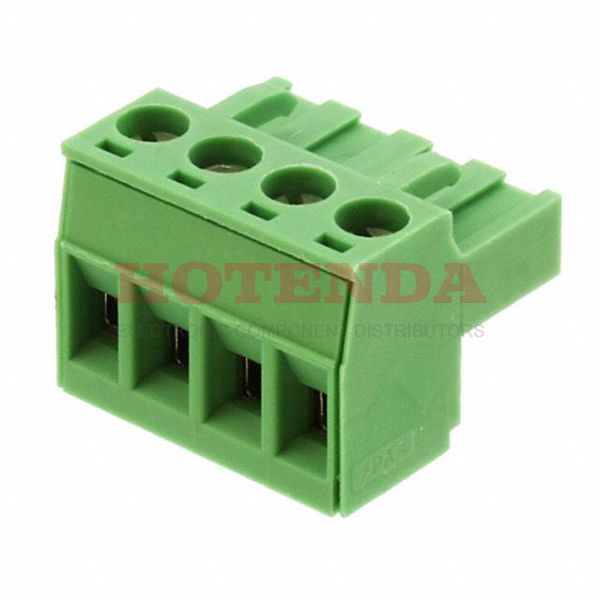

Name: 1780002
Brand: Phoenix Contact
SKU: 1780002
Price: 7.14000 USD
Availability: InStock

new-10%

1780002

Manufacturer part number:1780002

Manufacturer:Phoenix Contact

Description:1780002 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1780002 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Cable, Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	129.999998g
Packaging	Bulk
Published	2003
Series	COMBICON MSTBT
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	18.2mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	4
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	12A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	18.2mm
Length	20.32mm
Width	20.32mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1780002 Product Details

1780002 Overview

You get it in Screw, Socket packaging.Mounting type Free Hanging (In-Line) is selected for the device.It has been determined that a Bulk case is necessary to package the product.This is from the COMBICON MSTBT Series.With its Retention Latches (Non-Wire Side) feature, it is more powerful in many ways.There is a Cable, Free Hanging, Plug-In mount on the part.Ensure that the supply voltage of this chip does not exceed 250V.There are a lot of similarities between this part and other Plug, Female Sockets products.
