Name: 1779495
Brand: Phoenix Contact
SKU: 1779495
Price: 29.86000 USD
Availability: InStock

new

1779495

Manufacturer part number:1779495

Manufacturer:Phoenix Contact

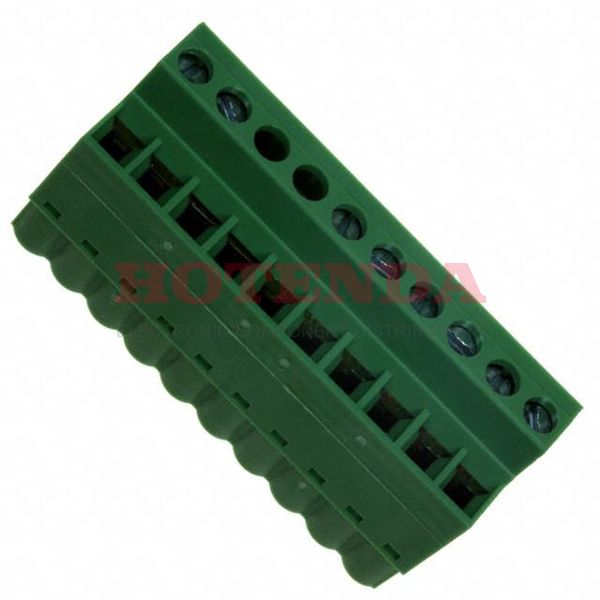

Description:Bulk 0.197 5.00mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON FRONT-MSTB Polyamide (PA), Nylon Tin

Case Package:SOT-23

Datasheet:1779495 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	600.102706g
Packaging	Bulk
Series	COMBICON FRONT-MSTB
Published	2010
Feature	Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	10
Color	Green
Number of Rows	1
Voltage - Rated	250V
Pitch	0.197 5.00mm
Orientation	Straight
Depth	27.5mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Pressure Clip
Number of Contacts	10
Housing Color	Green
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Voltage - UL	300V
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Positions Per Level	10
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Current - IEC	12A
Number of Positions Per Level	10
Screw Size	M2.5
Length	50mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1779495 Product Details

1779495 Overview

It comes in Screw packaging.The device's mounting type is Free Hanging (In-Line).In order to package the product, a Bulk case is used.It belongs to the COMBICON FRONT-MSTB Series of products.Its Retention Latches (Non-Wire Side) feature renders it more powerful in many ways.The part is mounted by Free Hanging.The supply voltage of this chip should not exceed 250V.This part shares lots of benefits with other Plug, Female Sockets products.
