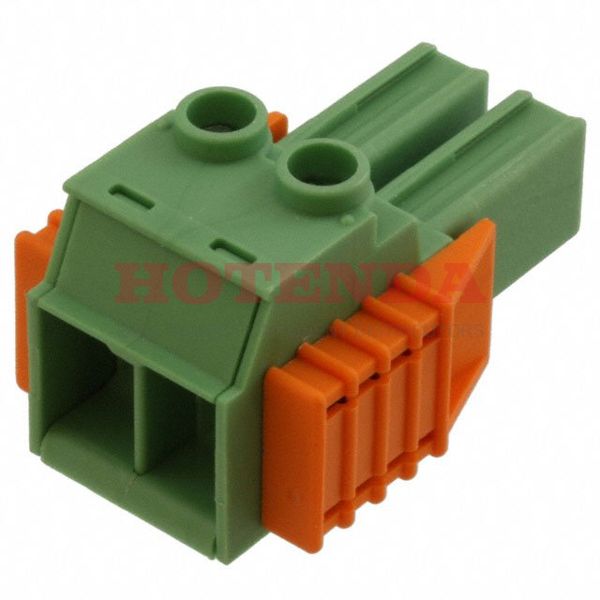

Name: 1778065
Brand: Phoenix Contact
SKU: 1778065
Price: 4.55000 USD
Availability: InStock

new-10%

1778065

Manufacturer part number:1778065

Manufacturer:Phoenix Contact

Description:1778065 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1778065 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2013
Series	COMBICON PC
Feature	Latch Lock
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Voltage - Rated	1kV
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Insulation Height	0.776 19.70mm
Reach Compliance Code	not_compliant
Current Rating	41A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	2
Voltage	600V
Max Current Rating	41A
Number of Levels	1
Current	41A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	8 AWG
Wire Gauge or Range - AWG	8-24 AWG
Voltage - IEC	1kV
Torque - Screw	0.5-0.8 Nm (4.4-7.1 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-10mm2
Wire Strip Length	10mm
Screw Size	M3
Height	19.7mm
Length	35.5mm
Width	35.3mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Lead Free	Lead Free

1778065 Product Details

1778065 Overview

The product comes in a package of Screw, Socket.A Free Hanging (In-Line) mounting type is specified for the device.The product is packaged in a Bulk case.This product is in the COMBICON PC Series.Several benefits come from the Latch Lock feature.The part is mounted by Cable, Free Hanging.The benefts of this part are similar to those of other Plug, Female Sockets products.
