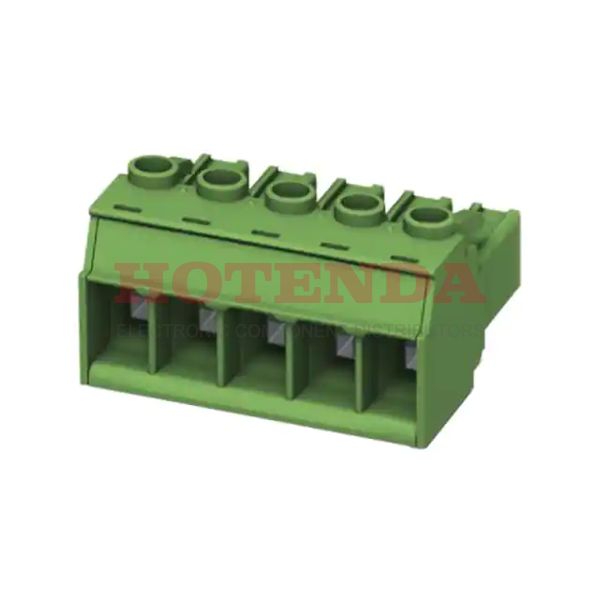

Name: 1777752
Brand: Phoenix Contact
SKU: 1777752
Price: 10.78000 USD
Availability: InStock

new

1777752

Manufacturer part number:1777752

Manufacturer:Phoenix Contact

Description:1777752 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1777752 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2011
Series	COMBICON PC
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	1kV
Pitch	0.300 7.62mm
Orientation	Straight
Depth	19.7mm
Insulation Height	0.776 19.70mm
Current Rating	41A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	UL
Number of Contacts	5
Voltage	600V
Max Current Rating	41A
Number of Levels	1
Current	41A
Wire Gauge (Max)	8 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	8-24 AWG
Voltage - IEC	1kV
Torque - Screw	0.5-0.8 Nm (4.4-7.1 Lb-In)
Number of Ways	5
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-10mm2
Wire Strip Length	10mm
Screw Size	M3
Wire Cross Section	6 mm2
Height	35.3mm
Length	19.7mm
Width	38.05mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1777752 Product Details

1777752 Overview

The packaging is Screw, Socket.Mounting type is Free Hanging (In-Line).We pack the product in a Bulk case.This product is part of the COMBICON PC Series.It is more powerful in many ways due to its Retention Latches (Non-Wire Side) feature.Mounted by Cable, Free Hanging, Plug-In.It is a part that shares many benefits with other products from the Plug, Female Sockets line.
