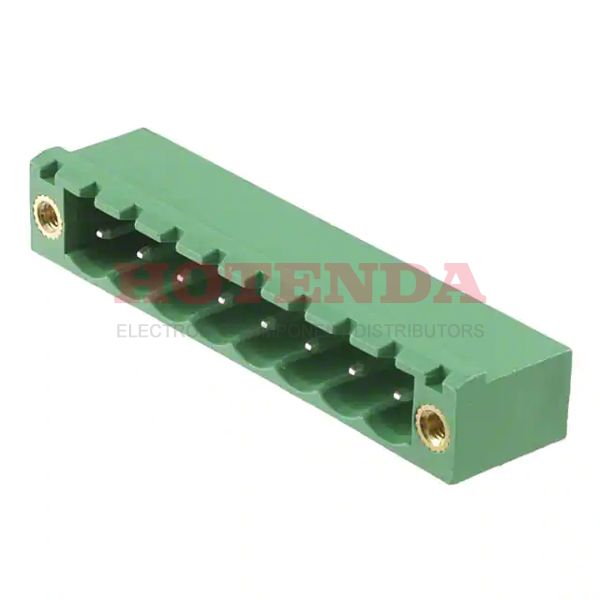

Name: 1776757
Brand: Phoenix Contact
SKU: 1776757
Price: 8.59000 USD
Availability: InStock

new-10%

1776757

Manufacturer part number:1776757

Manufacturer:Phoenix Contact

Description:1776757 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1776757 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	1.50003kg
Packaging	Bulk
Published	2011
Series	COMBICON MSTB
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PBT, 94V-0
Pitch	0.197 5.00mm
Orientation	Right Angle
Depth	12mm
Insulation Height	0.339 8.61mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	12A
Number of Levels	1
Current	12A
Contact Mating Finish	Tin
Number of Decks	1
Current - UL	15A
Voltage - IEC	400V
Number of Ways	8
Safety Approval	UL
Header Orientation	90°, Right Angle
Number of Positions Per Level	8
Length	50mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1776757 Product Details

1776757 Overview

Mounting type Through Hole is selected for the device.To package the product, we use a Bulk case.This product is from the COMBICON MSTB Series.Also, there's PBT, 94V-0, to name a few.This feature renders it more powerful in a number of ways because of its Mating and Mounting Flange feature.Mounted by Through Hole.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
