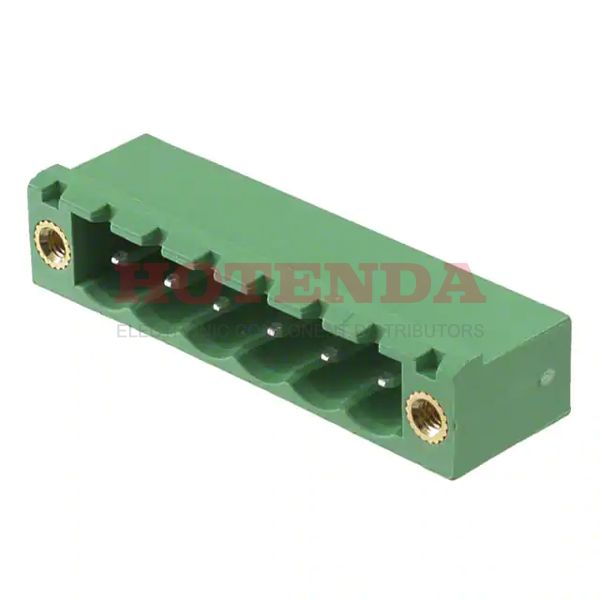

Name: 1776540
Brand: Phoenix Contact
SKU: 1776540
Price: 6.43000 USD
Availability: InStock

new-10%

1776540

Manufacturer part number:1776540

Manufacturer:Phoenix Contact

Description:1776540 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1776540 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Tin
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	152.999995g
Packaging	Bulk
Published	2010
Series	COMBICON MSTB
Feature	Mating and Mounting Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	6
Color	Green
Number of Rows	1
Voltage - Rated	250V
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	12mm
Insulation Height	0.339 8.61mm
Current Rating	12A
Termination Style	Solder
Number of Contacts	6
Housing Color	Green
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	12A
Number of Levels	1
Current	12A
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	15A
Voltage - IEC	400V
Positions Per Level	6
Header Orientation	90°, Right Angle
Current - IEC	12A
Number of Positions Per Level	6
Height	12.1mm
Length	30.48mm
Width	40.64mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1776540 Product Details

1776540 Overview

A Plug packaging is included.This device is mounted in the Through Hole position.It's packaged in a Bulk case.Among the products in the COMBICON MSTB Series, it is one of the most popular.In many ways, it is more powerful due to its Mating and Mounting Flange feature.Through Hole is used to mount the part.As with other Header, Male Pins, Shrouded (4 Side) products, this part also offers a wide range of benefits.
