Name: 1769049
Brand: Phoenix Contact
SKU: 1769049
Price: 8.43000 USD
Availability: InStock

new-10%

1769049

Manufacturer part number:1769049

Manufacturer:Phoenix Contact

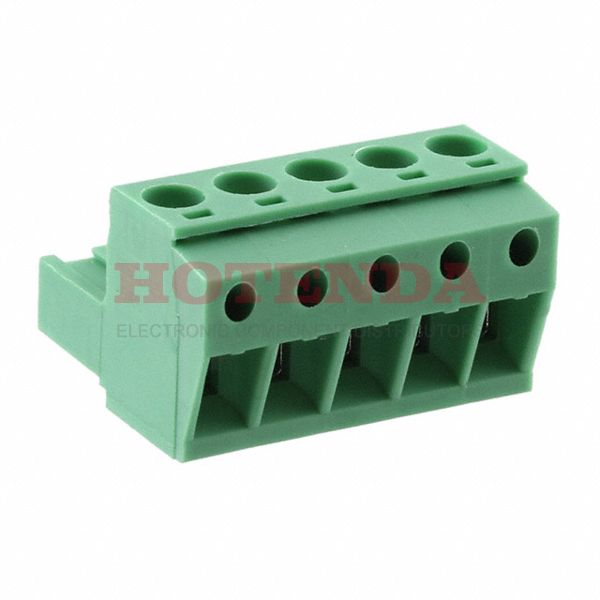

Description:Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON MSTBP Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1769049 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	128.999997g
Packaging	Bulk
Series	COMBICON MSTBP
Published	2011
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	5
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	5
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	12A
Screw Size	M3
Height	21.3mm
Length	18mm
Width	25.4mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1769049 Product Details

1769049 Overview

The product comes in a package of Screw, Socket.Free Hanging (In-Line) is the mount type.Bulk cases are used to package the product.This product is in the COMBICON MSTBP Series.Also, there's PA, 94V-0, to name a few.As a result of its Retention Latches (Non-Wire Side) feature, it possesses a great deal of power.There's a Free Hanging on the part.Other Plug, Female Sockets products share lots of benefits with this part.
