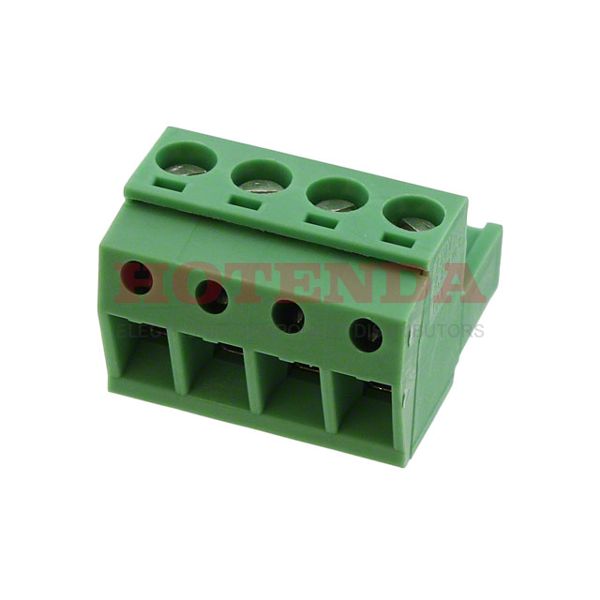

Name: 1769036
Brand: Phoenix Contact
SKU: 1769036
Price: 6.79000 USD
Availability: InStock

new-10%

1769036

Manufacturer part number:1769036

Manufacturer:Phoenix Contact

Description:1769036 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1769036 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	128.999997g
Packaging	Bulk
Published	2012
Series	COMBICON MSTBP
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	4
Color	Green
Number of Rows	1
Voltage - Rated	250V
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	12A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	20.32mm
Length	17mm
Width	21.3mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1769036 Product Details

1769036 Overview

Packaging is Screw, Socket.This device has a Free Hanging (In-Line) mounting type.To package the product, a Bulk case is used.The product belongs to the COMBICON MSTBP Series.This feature makes it more powerful in a number of ways due to its Retention Latches (Non-Wire Side) feature.It's mounted by Free Hanging.The benefts of this part are similar to those of other Plug, Female Sockets products.
