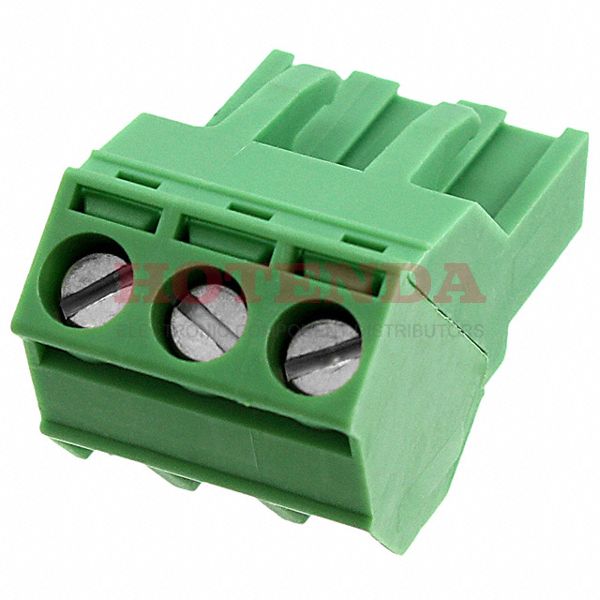

Name: 1768778
Brand: Phoenix Contact
SKU: 1768778
Price: 4.38000 USD
Availability: InStock

new-10%

1768778

Manufacturer part number:1768778

Manufacturer:Phoenix Contact

Description:Bulk 0.197 5.00mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON SMSTB Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1768778 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	5.939991g
Packaging	Bulk
Series	COMBICON SMSTB
Published	2008
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, 94V-2
Pitch	0.197 5.00mm
Orientation	Straight
Depth	15.5mm
Insulation Height	0.610 15.49mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CSA, UL, cULus
Number of Contacts	3
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	225°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M3
Stripping Length	7mm
Wire Cross Section	2.5 mm2
Height	15.5mm
Length	15mm
Width	25.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2
Lead Free	Lead Free

1768778 Product Details

1768778 Overview

A Screw, Socket package is included with it.Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the COMBICON SMSTB Series of products.Additionally, there are other features, such as PA, 94V-2.A number of features make it more powerful because of its Retention Latches (Non-Wire Side) feature.Cable, Free Hanging, Plug-In mounts the part.Several of the benefits of this part are also shared by other Plug, Female Sockets products.
