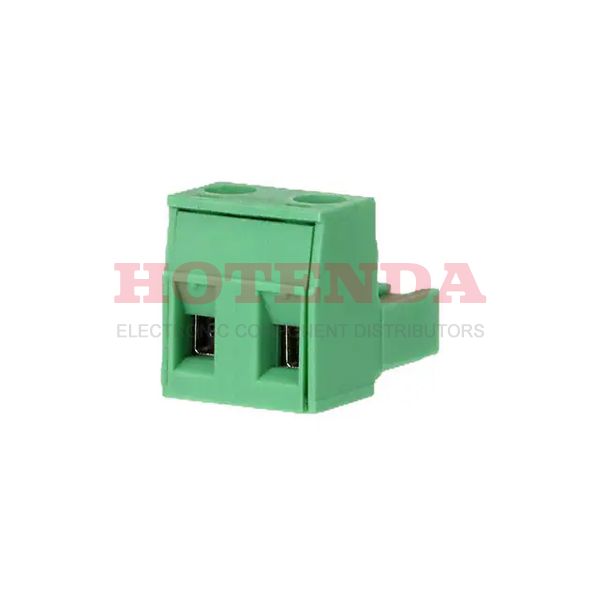

Name: 1766990
Brand: Phoenix Contact
SKU: 1766990
Price: 4.06000 USD
Availability: InStock

new-10%

1766990

Manufacturer part number:1766990

Manufacturer:Phoenix Contact

Description:1766990 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1766990 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	166.000009g
Packaging	Bulk
Published	2003
Series	COMBICON GMSTB
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	400V
Additional Feature	STANDARD: UL 94V-0, PA
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Orientation	Right Angle
Depth	18.2mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	400V
Number of Contacts	2
Voltage	500V
Max Supply Voltage	400V
Max Current Rating	12A
Number of Levels	1
Current	12A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Voltage - UL	300V
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	CB; CSA; CUL; EAC; UL; VDE
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Height	15mm
Length	13.24mm
Width	18.2mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2
Lead Free	Lead Free

1766990 Product Details

1766990 Overview

The product comes in a package of Screw, Socket.Its mounting type is Free Hanging (In-Line).To package the product, we use a Bulk case.Specifically, it is one of the products in the COMBICON GMSTB Series.In addition, there are other features, such as STANDARD: UL 94V-0, PA, to mention just a few.A number of features make the Retention Latches (Non-Wire Side) feature more powerful.It is mounted by Cable, Free Hanging.There should be no more than 400V voltage supplied to this chip.There are a lot of similarities between this part and other Plug, Female Sockets products.
