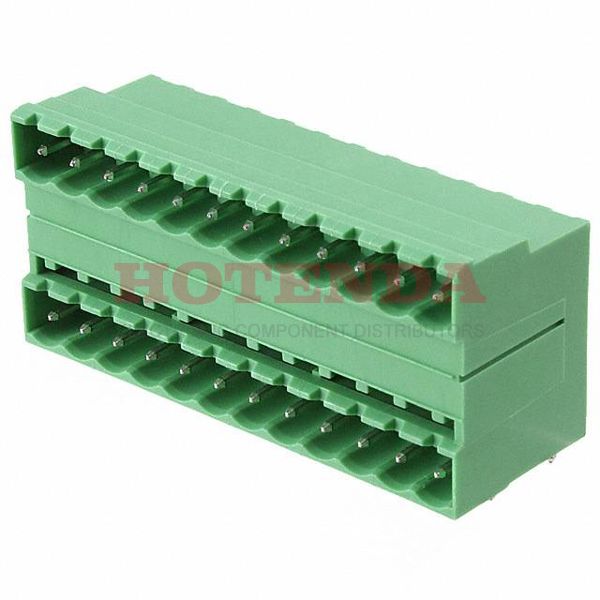

Name: 1762703
Brand: Phoenix Contact
SKU: 1762703
Price: 18.12000 USD
Availability: InStock

new

1762703

Manufacturer part number:1762703

Manufacturer:Phoenix Contact

Description:1762703 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1762703 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	161.000004g
Packaging	Bulk
Published	2003
Series	COMBICON MDSTB
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	24
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	22mm
Insulation Height	1.122 28.50mm
Reach Compliance Code	unknown
Current Rating	10A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	10A
Number of Levels	2
Current	15A
Number of Decks	1
Voltage - IEC	630V
Positions Per Level	12
Number of Ways	12
Safety Approval	UL
Header Orientation	90°, Right Angle
Height	32mm
Length	62.96mm
Width	62.52mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1762703 Product Details

1762703 Overview

Packaging for this item is Plug.Mounting type Through Hole is selected for the device.It's packaged in a Bulk case.This is from the COMBICON MDSTB Series.Other features include PA, 94V-0, to name just a few.It's mounted by Through Hole.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
